Our pre-assembled handrail posts are designed to simplify your project, whether for fall protection, accessibility, or creating a boundary. With these posts, you only need to add horizontal tubes for the connections in between and the appropriate bolts for ground mounting (not included).

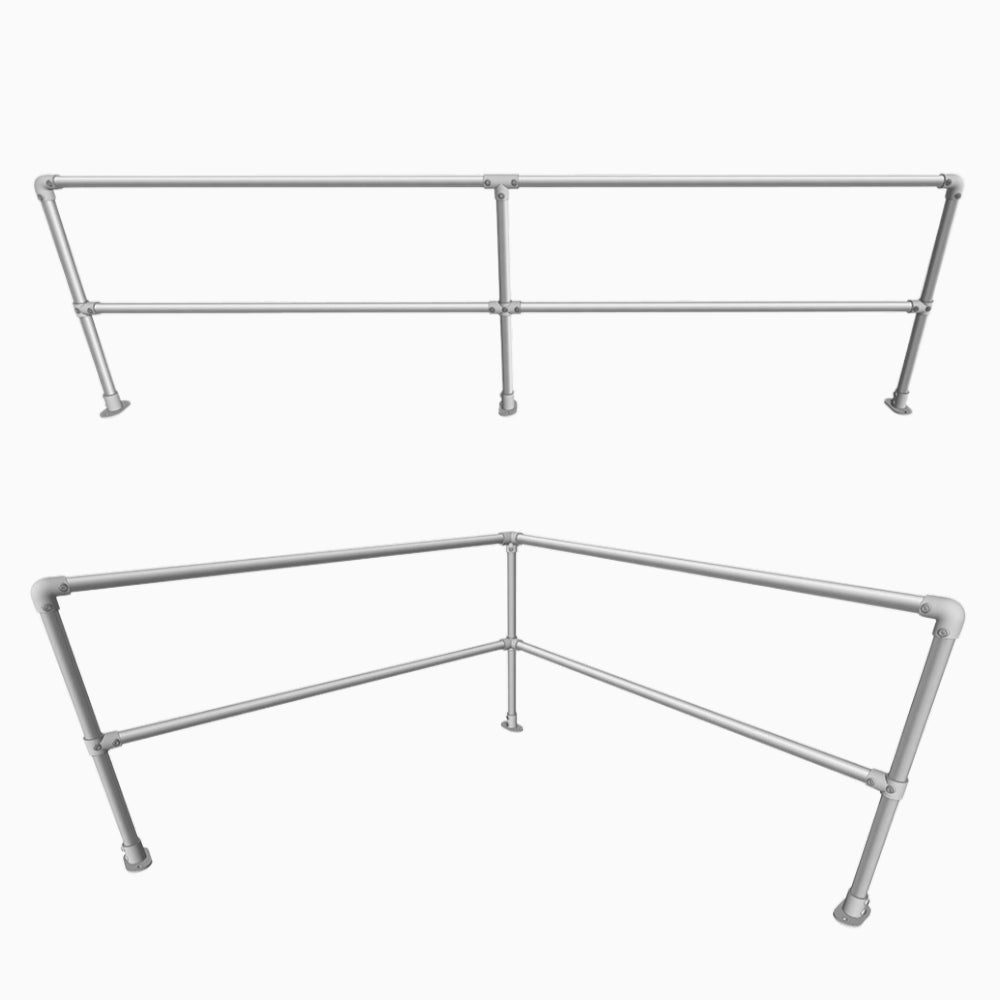

Available Configurations:
-
Corner Post: For a 90-degree corner connection.
-

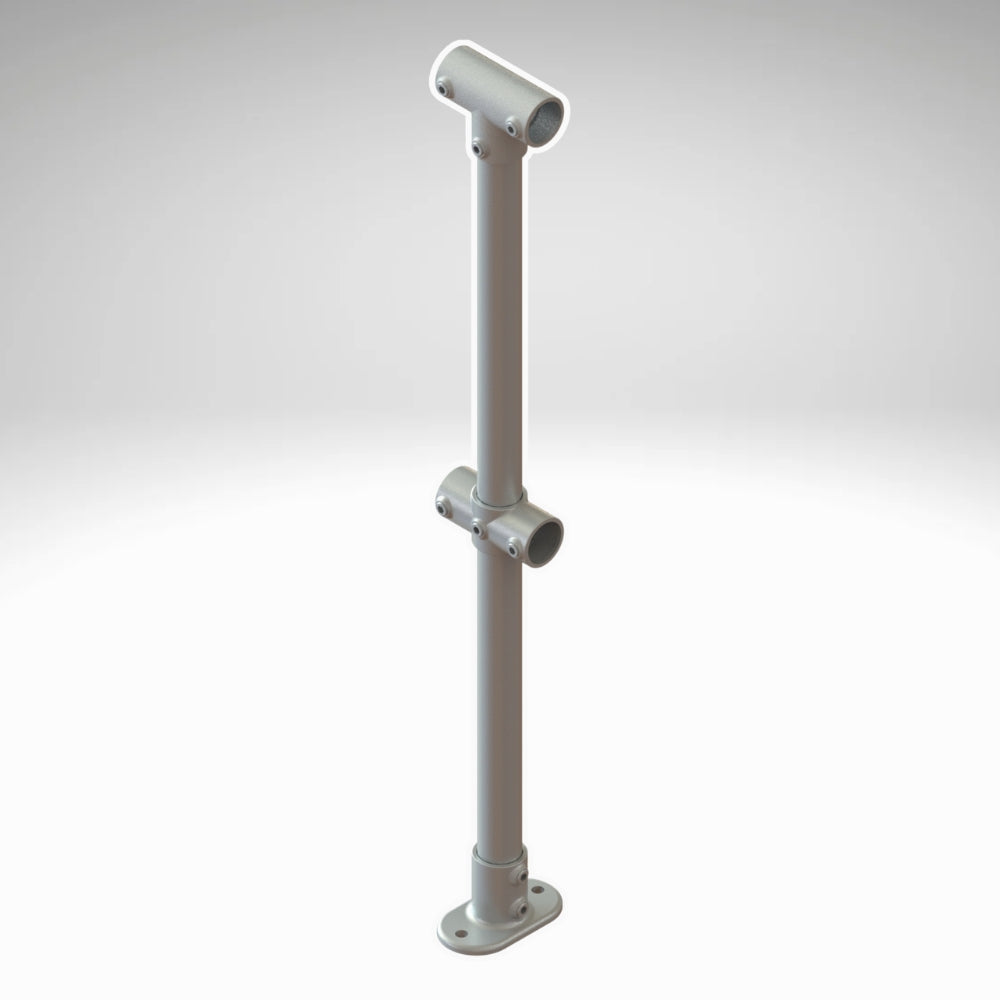

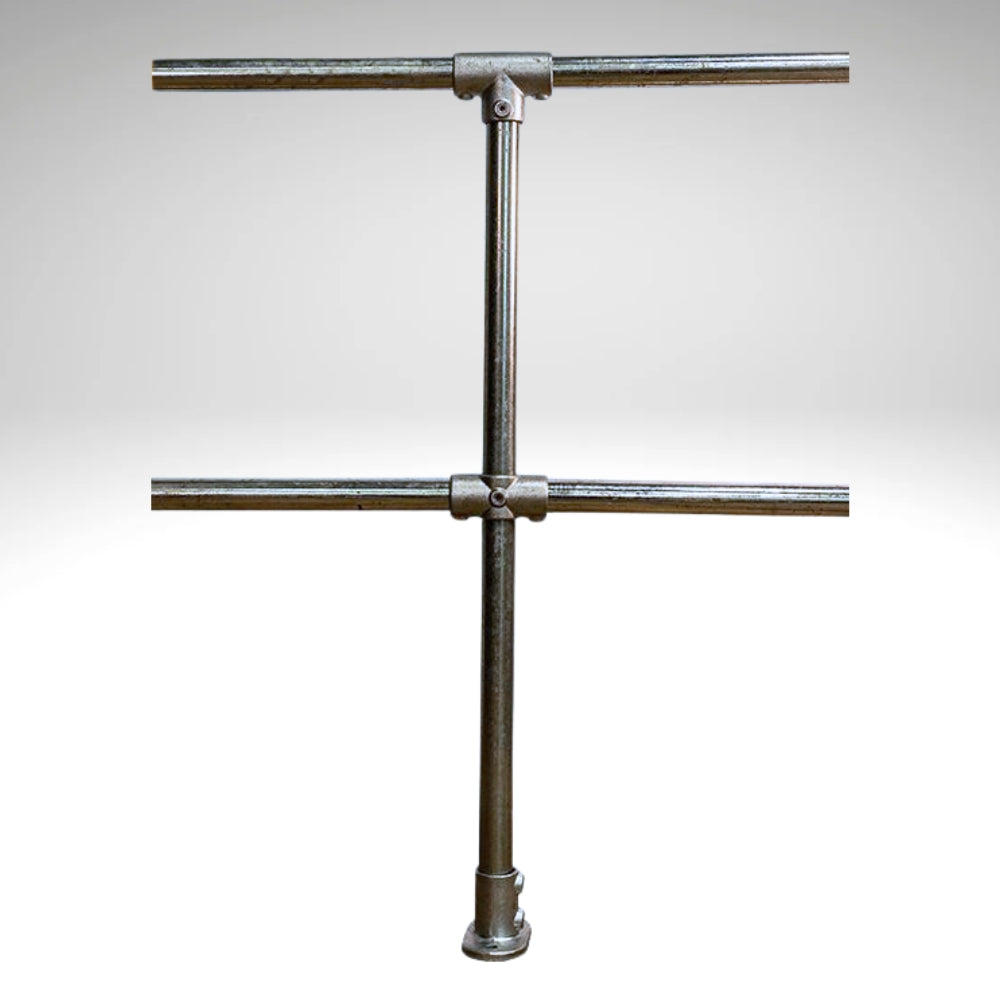

Mid Post: For a straight connection at 180 degrees..
-
End Post: For a freestanding end.
-
End D-Post: For a freestanding end that extends approximately 30 cm beyond the post (includes a pre-assembled 'D' section).
If your project starts or ends against a wall, our wall flanges (available in 42 mm or 48 mm) are perfect for creating a secure wall connection.
We also offer through bolts for mounting the posts to hard surfaces. An Allen key is required for assembly.
Dimensions and Standards

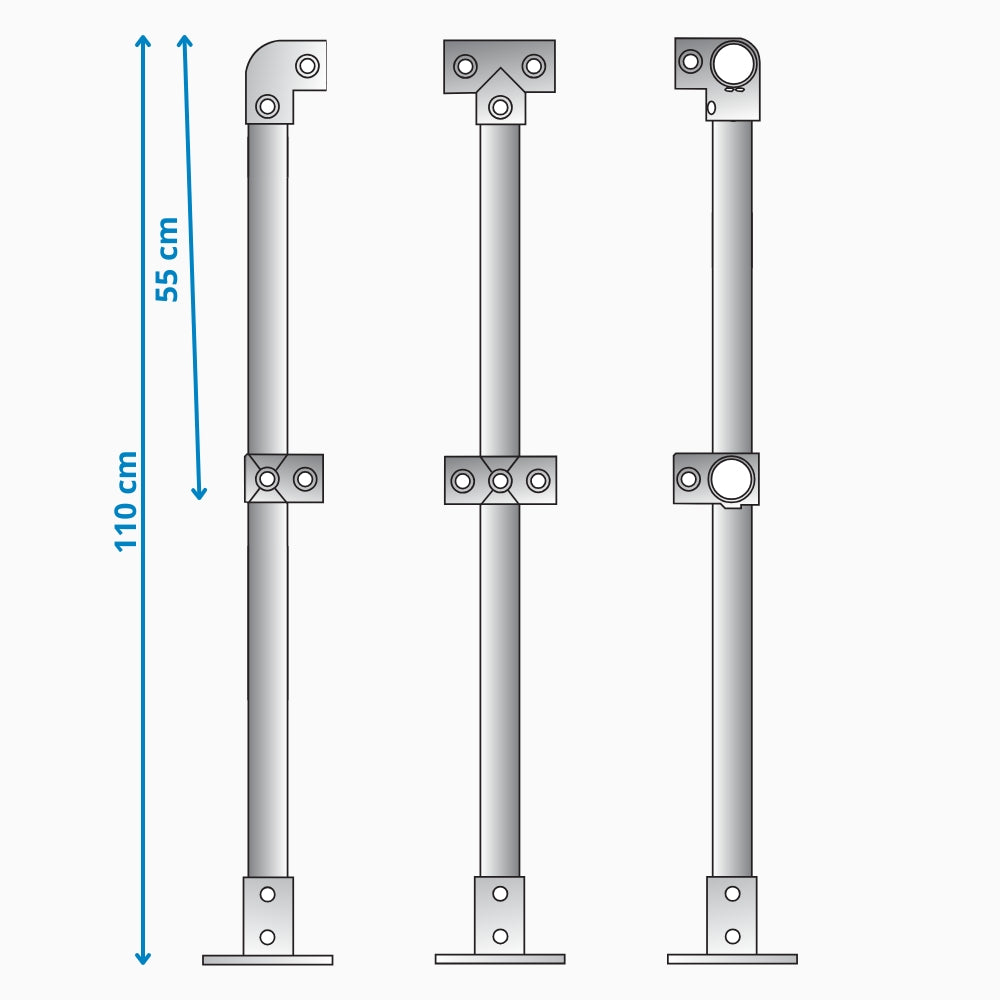

Railing Height
Our railing kits comply with UK Building Regulations and BS 6180:2011, which specify a total height of 110 cm for balustrades and railings in public or commercial buildings. All our kits are designed to meet this height requirement.
Post Spacing Guidelines
The distance between posts is determined by BS 6180:2011 and BS EN 1991-1-1, which establish the minimum load-bearing capacity in Newton-meters based on usage. Minimum load requirements per category:
-
360 N/m: For offices and light commercial spaces.
-
740 N/m: For public areas with normal traffic.
-
1500+ N/m: For high-traffic public spaces (e.g., stadiums, concert halls), depending on crowd density and movement dynamics.
Most projects fall under the first category. To ensure compliance with our kit, we recommend using a tube length of 128 cm (for size 7 / 42.4 mm) or 145 cm (for size 8 / 48.3 mm). See below the maximum recommended tube lengths per category.
| N/m |
Size 7
42.4 mmm |
Size 8
48.3 mm |
| 360 N/m |
170 cm |
220 cm |
| 740 N/m |
80 cm |
110 cm |
| 1500 N/m |
40 cm |
50 cm |
By following these recommendations, you can ensure your railing meets all relevant safety standards. Start building your secure and compliant handrail system with our pre-assembled handrail parts now!
Disclaimer: We do not take responsibility for ensuring compliance with regulations. The installer remains responsible for being aware of applicable requirements and ensuring compliance.
Quality & Standards
Our tube clamps are manufactured in accordance with BS EN 1562 and produced from high-quality malleable iron (grade KTH350-10). The tube clamps are finished with a hot-dip galvanised coating according to BS EN ISO 1461, providing excellent corrosion resistance and making them suitable for both indoor and outdoor use.
When properly tightened to a recommended torque of 39 Nm, the tube clamps create a strong and reliable mechanical connection. Load capacity depends on the specific fitting type, tube size and construction design.
If you would like to learn more about our key clamp system, please visit our guide: Everything about key clamps.
