Standard Flange for Wall or Floor (42.4 mm / Size 7)

Name: Standard Flange for Wall or Floor (42.4 mm / Size 7)
Brand: Keyclampshop
SKU: C11G32
Price: 4.79 GBP
Availability: InStock

Save £0.64

C11G32 | In Stock

Payment methods

Safe & secure payments via:

Trusted shops trustmark

Great reviews by real customers:

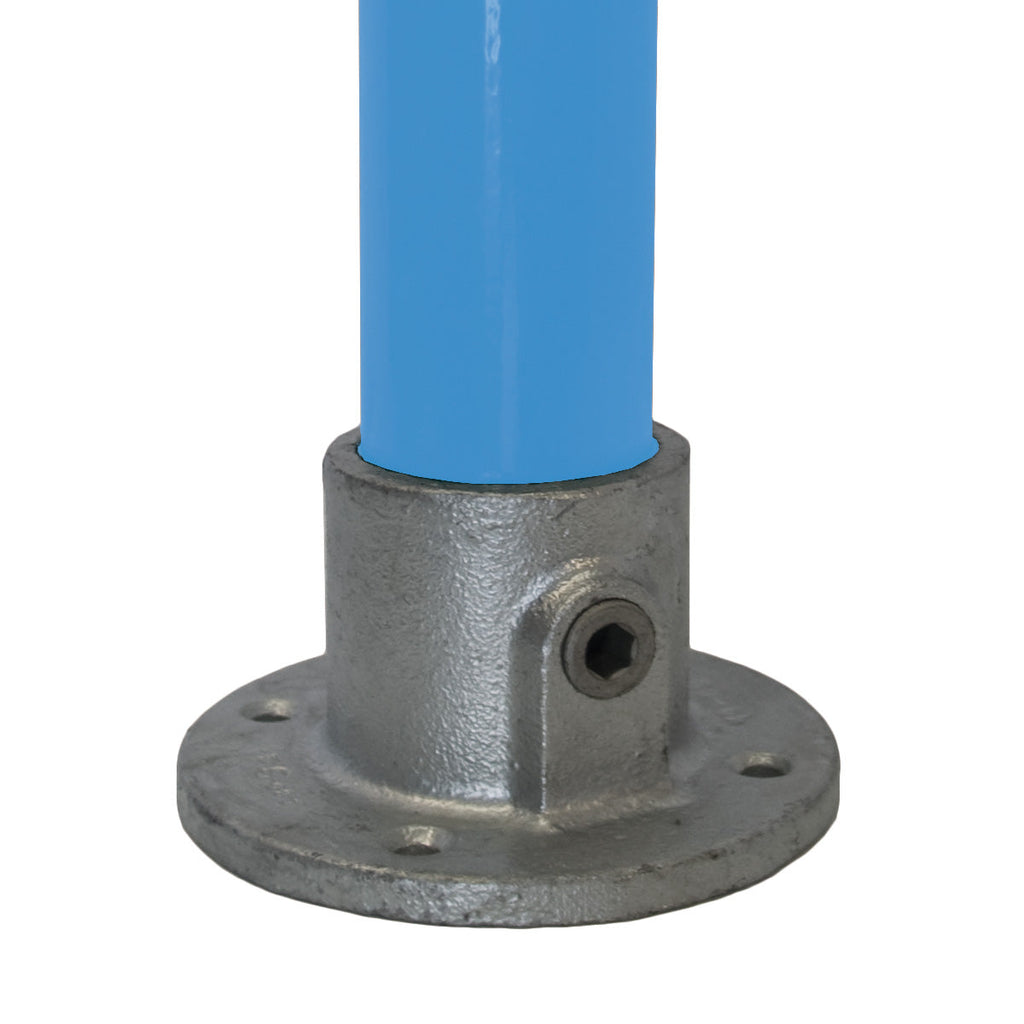

This standard flange provides a secure positional fixing for 42.4 mm tubes to walls, floors or ceilings. Commonly used to provide a wall fixing for guardrails, as a mounting plate in furniture and display systems or in light-duty railing as a baseplate.

Note: This fitting is not suitable for load-bearing or safety-critical applications. For structural guardrails or vertical supports use a Railing Base Flange instead.

Typical applications: shelving supports, garment rails, table legs, and wall-mounted tube ends.

Assembly
The included set screw (Allen screw) makes assembly easy. An Allen key is the only tool needed to firmly secure the tubes in the tubeclamps. Please insure the right size allen key, an incorrect size can potentially damage the set screw.

Quality
Our key clamps have been manufactured according to strict specifications. The fittings are made from malleable iron (according to BS EN 1562) and are usually delivered in a hot dip galvanised finish (BS EN ISO 141) in order to combat corrosion and have a longer lasting product. Because of the galvanised finish this fitting is perfectly suitable for outdoor use. Our fittings are very strong and will support an axial load of up to 900 kg when tightened to a torque of 39Nm.

Questions about our key clamps? Then have a look at 'Everything about key clamps'.

Known part numbers:
131-C (Tubeclamps)
61-7 (Kee Klamp)
C11G32 (Fast Clamp)
131-3 (Q-Clamp)
A10-7 (Alvin)
608010D (EZ)
