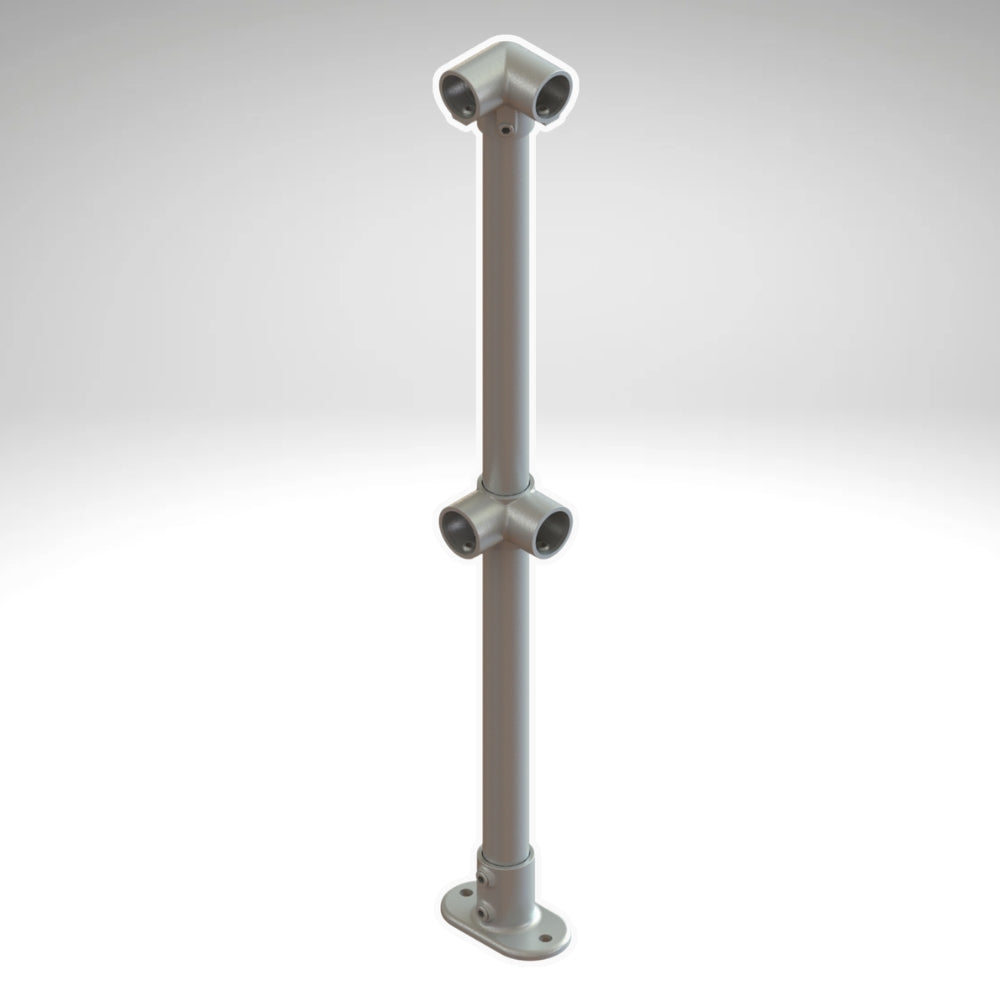

Corner Post 42.4 mm - Pre-assembled Handrail Part

Corner Post 42.4 mm - Pre-assembled Handrail Part

Name: Corner Post 42.4 mm - Pre-assembled Handrail Part
Brand: Keyclampshop.co.uk
SKU: RK7-R90
Price: 40.18 GBP
Availability: InStock

RK7-R90 | In Stock

Payment methods

Safe & secure payments via:

Trusted shops trustmark

Great reviews by real customers:

Our pre-assembled handrail posts are designed to simplify your project, whether for fall protection, accessibility, or creating a boundary. With these posts, you only need to add horizontal tubes for the connections in between and the appropriate bolts for ground mounting (not included).

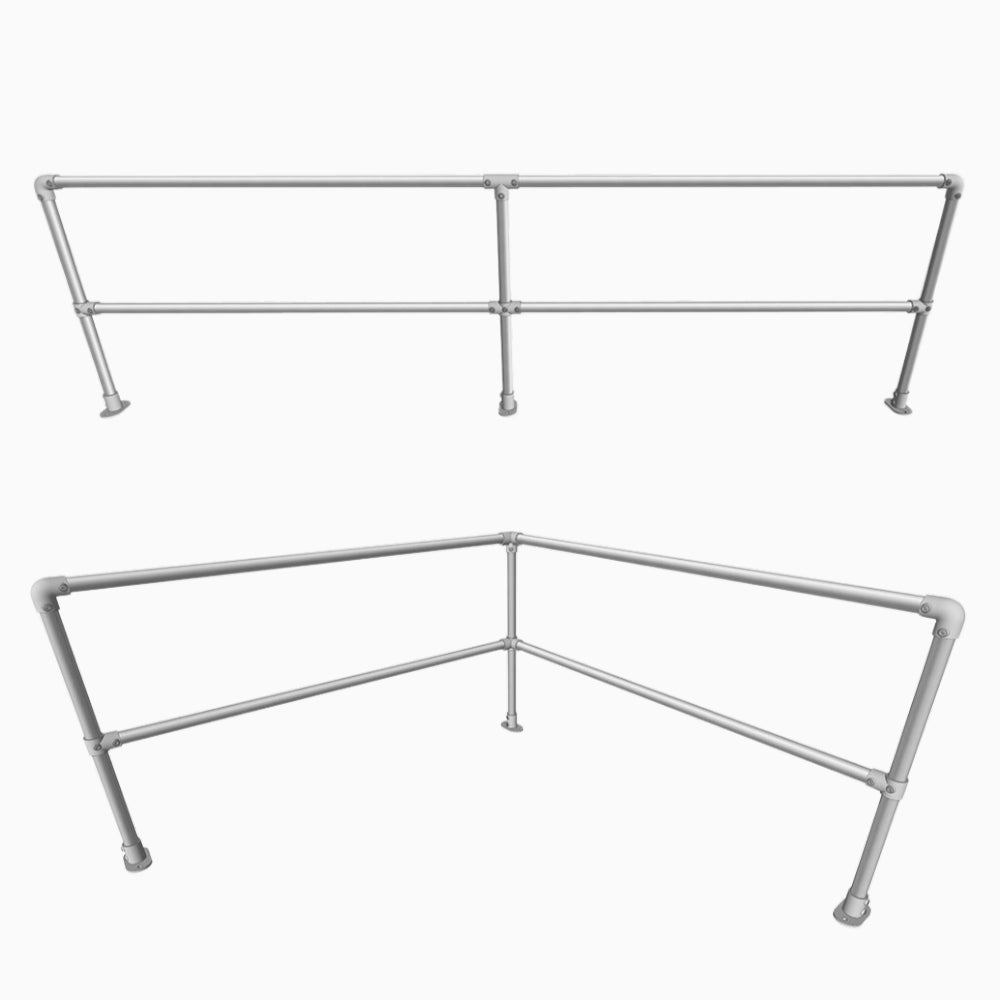

Available Configurations:

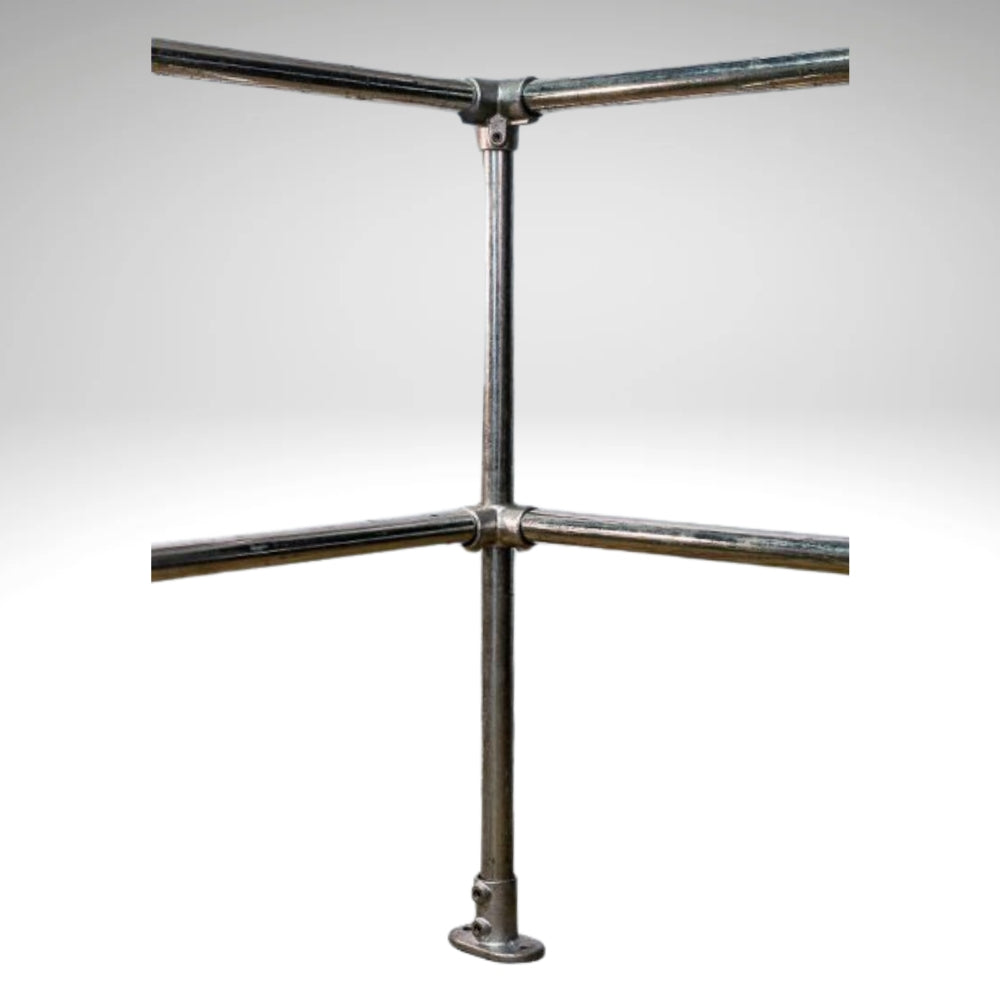

Corner Post: For a 90-degree corner connection.
Mid Post: For a straight connection at 180 degrees..
End Post: For a freestanding end.
End D-Post: For a freestanding end that extends approximately 30 cm beyond the post (includes a pre-assembled 'D' section).

If your project starts or ends against a wall, our wall flanges (available in 42 mm or 48 mm) are perfect for creating a secure wall connection.

We also offer through bolts for mounting the posts to hard surfaces. An Allen key is required for assembly.

Dimensions and Standards

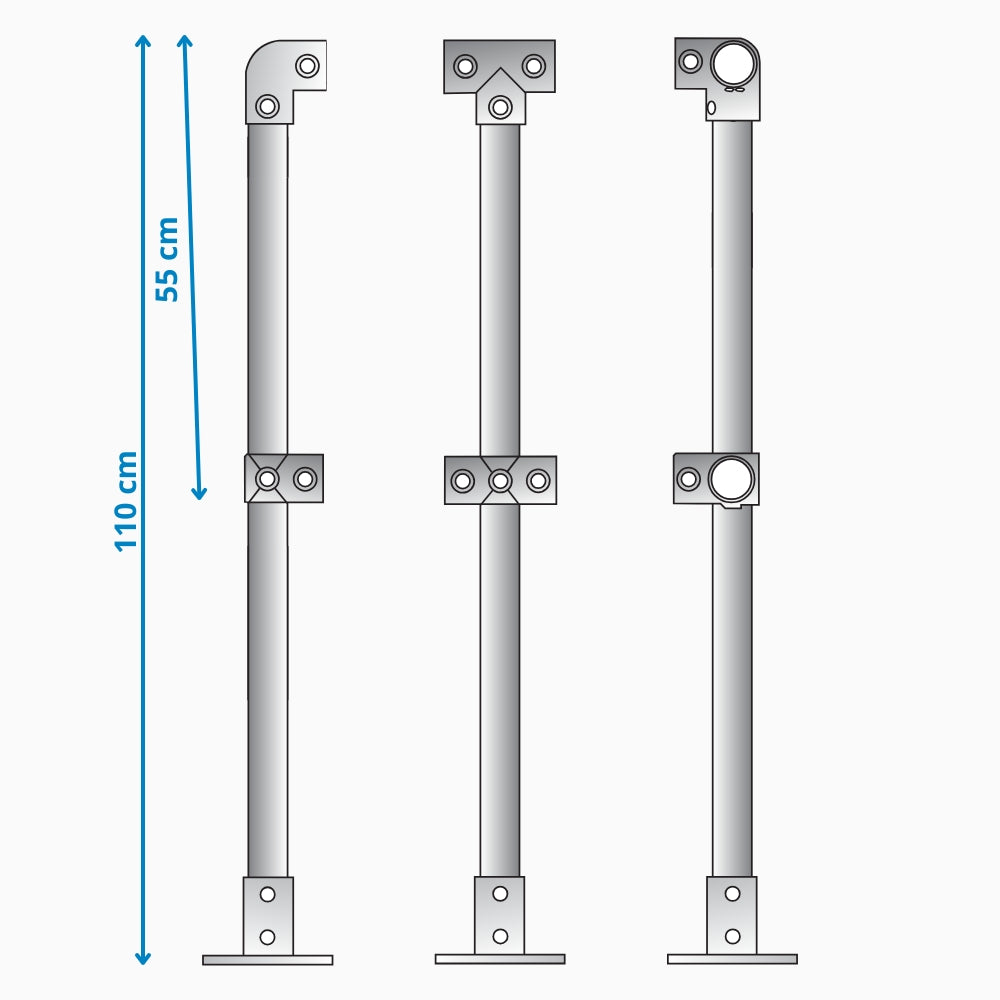

Railing Height

Our railing kits comply with UK Building Regulations and BS 6180:2011, which specify a total height of 110 cm for balustrades and railings in public or commercial buildings. All our kits are designed to meet this height requirement.

Post Spacing Guidelines

The distance between posts is determined by BS 6180:2011 and BS EN 1991-1-1, which establish the minimum load-bearing capacity in Newton-meters based on usage. Minimum load requirements per category:

360 N/m: For offices and light commercial spaces.
740 N/m: For public areas with normal traffic.
1500+ N/m: For high-traffic public spaces (e.g., stadiums, concert halls), depending on crowd density and movement dynamics.

Most projects fall under the first category. To ensure compliance with our kit, we recommend using a tube length of 128 cm (for size 7 / 42.4 mm) or 145 cm (for size 8 / 48.3 mm). See below the maximum recommended tube lengths per category.

N/m	Size 7 42.4 mmm	Size 8 48.3 mm
360 N/m	170 cm	220 cm
740 N/m	80 cm	110 cm
1500 N/m	40 cm	50 cm

By following these recommendations, you can ensure your railing meets all relevant safety standards. Start building your secure and compliant handrail system with our pre-assembled handrail parts now!

Disclaimer: We do not take responsibility for ensuring compliance with regulations. The installer remains responsible for being aware of applicable requirements and ensuring compliance.

Quality
Our key clamps have been manufactured according to strict specifications. The fittings are made from malleable iron (according to BS EN 1562) and are usually delivered in a hot dip galvanised finish (BS EN ISO 141) in order to combat corrosion and have a longer lasting product. Because of the galvanised finish this fitting is perfectly suitable for outdoor use. Our fittings are very strong and will support an axial load of up to 900 kg when tightened to a torque of 39Nm.

Questions about our key clamps? Then have a look at 'Everything about key clamps'.

Shipping costs and delivery times

Our shipping rates are transparent and categorized based on length and weight. Below is an overview of all possible rates. For convenience, the shopping cart always displays the available rates based on your items and address.

Shipping rate Key Clamps and Tubes

Most orders fall under our fixed low shipping rate. This applies to orders containing only keyclamps or tubes up to 300 cm and 150 kg:

► England and Wales*: £15 excl. VAT/ £18 incl. VAT
► Scotland*: £20 excl. VAT / £24 incl. VAT
► Northern Ireland: £40 excl. VAT / £48 incl. VAT

Complete Shipping Costs Overview

Category / Region	excl. / incl. VAT	Delivery
Key Clamps and/or tubes up to 300 cm and 150 kg
England and Wales*	£15 / £18	1 - 3
Scotland*	£20 / £24	1 - 3
Northern Ireland	£40 / £48	1 - 3
* Isle of Wight	£30 / £36	2 - 4
* Aberdeen, Highland and Islands	£45 / £54	3 - 6
Express available: Delivery before 12 PM: +£10 excl. VAT
Express available: Delivery before 10.30 AM: +£35 excl. VAT
Key Clamps and/or tubes up to 320 cm and 150 kg
England and Wales*	£50 / £60	1 - 3
Scotland*	£60 / £72	1 - 3
Northern Ireland	£100 / £120	1 - 3
* Isle of Wight	£65 / £78	2 - 4
* Aberdeen, Highland and Islands	£85 / £102	3 - 6
Key Clamps and/or tubes up to 120 cm (no weight limit)
England/Wales - Economy	£65 / £78	2 - 4
England/Wales - Express	£80 / £96	1 - 2
Scotland - Economy	£95 / £114	2 - 4
Scotland - Express	£120 / £144	1 - 2
Key Clamps and/or tubes up to 240 cm (no weight limit)
England/Wales - Economy	£120 / £144	2 - 4
England/Wales - Express	£150 / £180	1 - 2
Scotland - Economy	£200 / £240	2 - 4
Scotland - Express	£240 / £288	1 - 2
Key Clamps and/or tubes (no length or weight limit)
Zone 1 B, BS, CV, CW, DE, DY, GL, HR, LD, LE, MK, NN, NP, OX, SK, ST, SY, TF, WR, WS, WV	£100 / £120	2 - 6
Zone 2 AL, BA, BB, BD, BH, BL, CB, CF, CH, CM, CO, DN, DT, FY, GU, HD, HG, HP, HU, HX, IP, L, LA, LN, LS, LU, M, NG, OL, PE, PO1-PO22, PR, RG, RH, S, SG, SL, SN, SP, TA, WA, WF, WN, YO	£180 / £216	2 - 6
Zone 3 BN, BR, CA, CR, CT, DA, DH, DL, EC, EN, EX, HA, IG, KT, ME, NE, NR, NW, RM, SE, SM, SR, SS, SW, TN, TS, TW, UB, W, WC, WD	£260 / £312	2 - 6
Other regions	Price upon request

The table is scrollable if not fully displayed.

Price on request: If no options are available with standard rates we can request a price for you with our suppliers. You can place an order (without payment). We will calculate the shipping rate and inform you before proceeding. You can then choose whether you agree with the rate or wish to cancel.

Collection or pick up is unfortunately not available.
Tight deadline? Contact us to discuss options.
Note: Due to fluctuating demand in our facilities and logistics partners, delivery times are estimates only and not guaranteed.

Our delivery costs are structured transparently, ensuring you know your transport costs upfront. Delivery times vary by region, and pickup is unfortunately not an option.

Keyclampshop.co.uk has been delivering everything you need for your key clamps project for over 10 years through multiple webshops. We operate in the UK, Netherlands, Germany and Belgium. We operate as a wholesaler and also sell direct to consumers and businesses through our webshop.

We offer a large assortment of Key clamps of the highest quality. Additionally we also offer a number of accessories. Key clamps are also known as tube clamps of pipe fittings.

Quality
We only offer quality materials. Our key clamps are made using a sophisticated molding process that produces nicely finished and straight fittings. All our key clamps are deliver with a set screw as standard.
