Three Socket Cross (26.9 mm / Size 5)

Name: Three Socket Cross (26.9 mm / Size 5)
Brand: Keyclampshop
SKU: C23G20
Price: 6.61 GBP
Availability: InStock

Save £0.42

C23G20 | In Stock

Payment methods

Safe & secure payments via:

Trusted shops trustmark

Great reviews by real customers:

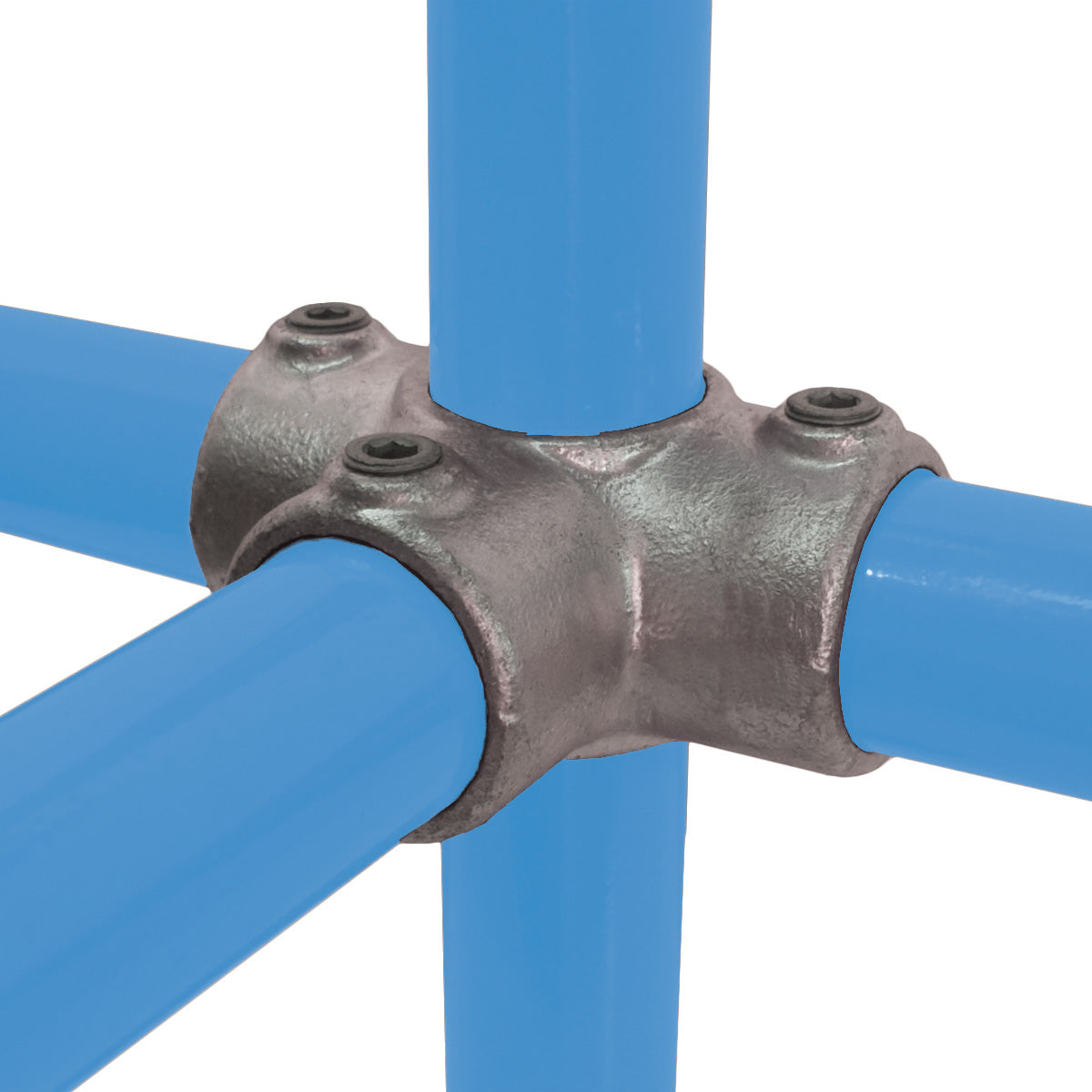

The Three Socket Cross, also referred to as a Side Outlet Tee, is a key clamp designed to connect three horizontal tubes at 90° angles around a continuous upright. It is commonly used to create midrail connections in guardrails or for joining horizontal members in shelving, tables, or frame structures.

,This tubefitting offers a strong and stable joint with three outlets arranged symmetrically around the vertical post.

Assembly
The included set screw (Allen screw) makes assembly easy. An Allen key is the only tool needed to firmly secure the tubes in the tubeclamps. Please insure the right size allen key, an incorrect size can potentially damage the set screw.

Quality
Our key clamps have been manufactured according to strict specifications. The fittings are made from malleable iron (according to BS EN 1562) and are usually delivered in a hot dip galvanised finish (BS EN ISO 141) in order to combat corrosion and have a longer lasting product. Because of the galvanised finish this fitting is perfectly suitable for outdoor use. Our fittings are very strong and will support an axial load of up to 900 kg when tightened to a torque of 39Nm.

Questions about our key clamps? Then have a look at 'Everything about key clamps'.

Known part numbers:
176-A (Tubeclamps)
35-5 (Kee Klamp)
C23G20 (Fast Clamp)
176-1 (Q-Clamp)
A24-5 (Alvin)
608024B (EZ)
