Swivel Elbow (90° to 200°) (48.3 mm / Size 8)

Name: Swivel Elbow (90° to 200°) (48.3 mm / Size 8)
Brand: Keyclampshop
SKU: BC05G40
Price: 13.00 GBP
Availability: InStock

BC05G40 | In Stock

Payment methods

Safe & secure payments via:

Trusted shops trustmark

Great reviews by real customers:

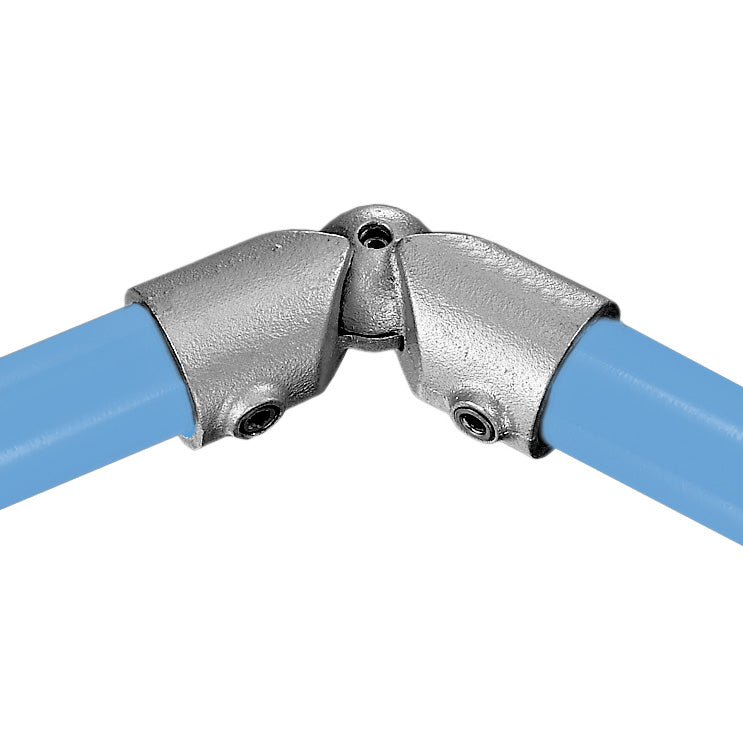

The Swivel Elbow key clamp creates a variable angled joint between two tubes at a fixed angle ranging from 90° to 200°. Unlike standard swivel fittings, this elbow does not swing freely but is held in position by an internal spring mechanism. The angle can be adjusted by applying force through the connected tubes.

This fitting is ideal for non-standard corners or angled joints in handrailing, furniture, signage or display structures. Made from hot-dip galvanised steel, suitable for indoor and outdoor applications. Not intended for primary structural or safety-critical use.

Typical applications: angled frames, banner structures, folding supports, modular display assemblies.

Assembly
The included set screw (Allen screw) makes assembly easy. An Allen key is the only tool needed to firmly secure the tubes in the tubeclamps. Please insure the right size allen key, an incorrect size can potentially damage the set screw.

Quality
Our key clamps have been manufactured according to strict specifications. The fittings are made from malleable iron (according to BS EN 1562) and are usually delivered in a hot dip galvanised finish (BS EN ISO 141) in order to combat corrosion and have a longer lasting product. Because of the galvanised finish this fitting is perfectly suitable for outdoor use. Our fittings are very strong and will support an axial load of up to 900 kg when tightened to a torque of 39Nm.

Questions about our key clamps? Then have a look at 'Everything about key clamps'.

Known part numbers:
BC123-DD (Tubeclamps)
BC53-88 (Kee Klamp)
BC05G40 (Fast Clamp)
125H-4 (Q-Clamp)
A27-8 (Alvin)
608125E (EZ)
