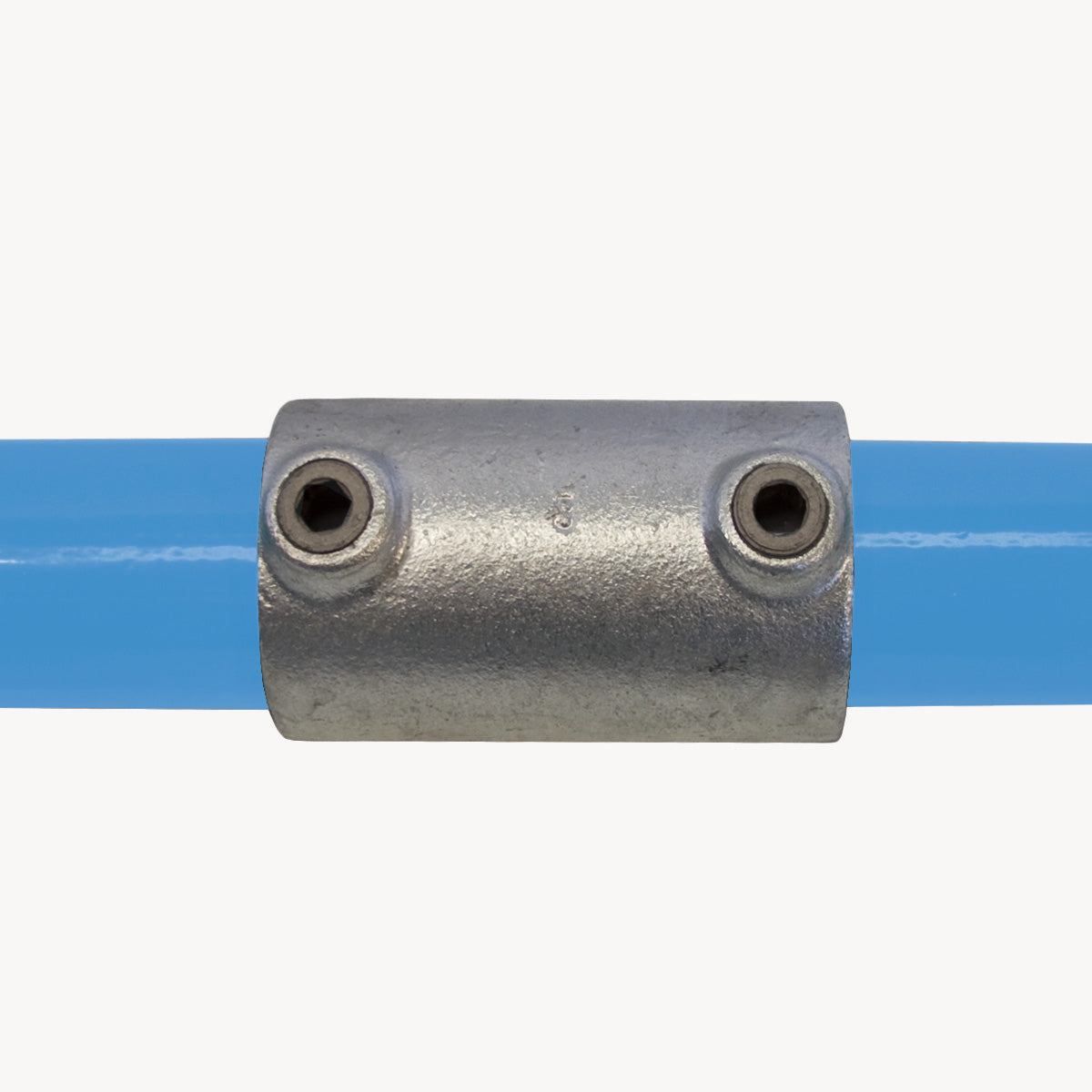

The Sleeve Joint is an external key clamp designed to connect two 26.9 mm tubes in a straight, in-line position. Ideal for extending tube lengths in non-load-bearing applications.
This fitting must be supported close to another joint and is not suitable for structural loads or vertical posts. For a flush finish, consider using an internal expanding connector instead.
Typical applications: lightweight frames, display structures, and extensions of horizontal rails.
Assembly
Each key clamp is supplied with a set screw (Allen screw) for secure installation. An Allen key is the only tool required to tighten the tube firmly in the key clamp. Always use the correct Allen key size to prevent damage to the set screw and ensure proper tightening.
Quality & Standards
Our tube clamps are manufactured in accordance with BS EN 1562 and produced from high-quality malleable iron (grade KTH350-10). The tube clamps are finished with a hot-dip galvanised coating according to BS EN ISO 1461, providing excellent corrosion resistance and making them suitable for both indoor and outdoor use.
When properly tightened to a recommended torque of 39 Nm, the tube clamps create a strong and reliable mechanical connection. Load capacity depends on the specific fitting type, tube size and construction design.
If you would like to learn more about our key clamp system, please visit our guide: Everything about key clamps.
Known part numbers:
149-A (Tubeclamps)
14-5 (Kee Klamp)
C00G20 (Fast Clamp)
149-1 (Q-Clamp)
A8-5 (Alvin)
608008B (EZ)
