Triangular Palm Fixing Wall-Mounted Railing Base (48.3 mm / Size 8)

Name: Triangular Palm Fixing Wall-Mounted Railing Base (48.3 mm / Size 8)
Brand: Keyclampshop
SKU: C15G40
Price: 10.05 GBP
Availability: InStock

Save £0.64

C15G40 | In Stock

Payment methods

Safe & secure payments via:

Trusted shops trustmark

Great reviews by real customers:

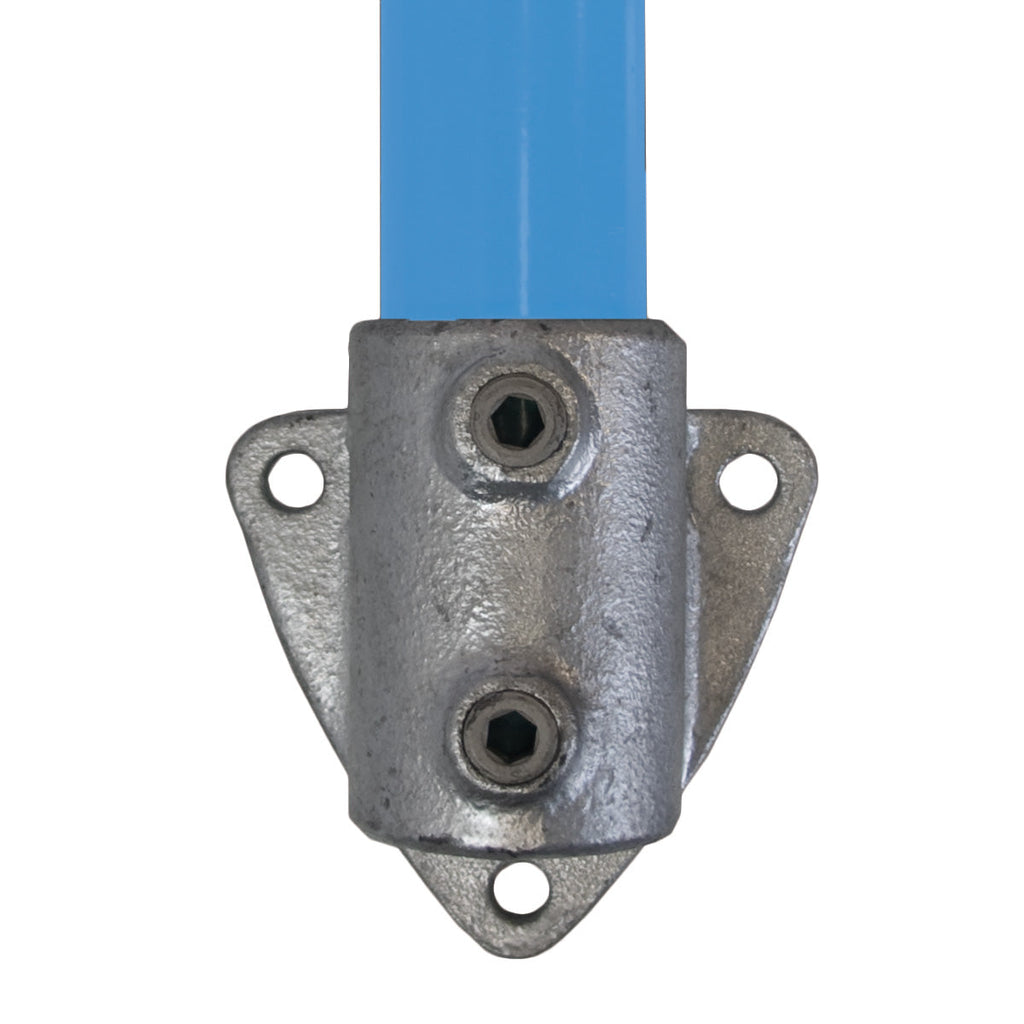

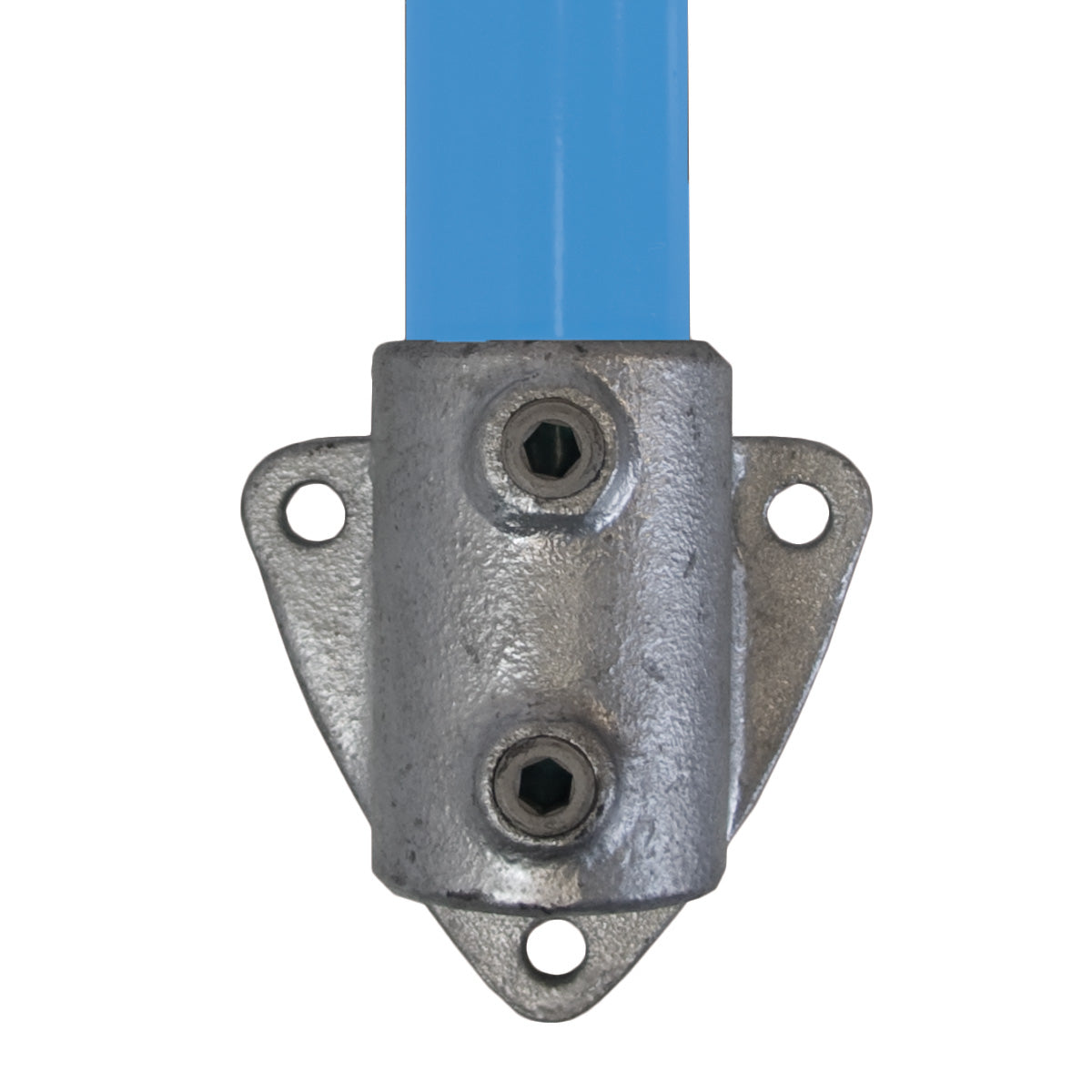

This compact side palm fixing base has a triangular flange that mounts flush to a wall or surface. It supports a vertical post directly against the structure, making it ideal for space-saving railing designs. The tube cannot pass through the clamp.

Can be used in combination with a Single or Double Fixing Pad for additional rail support or side-mounted midrails.

Assembly
The included set screw (Allen screw) makes assembly easy. An Allen key is the only tool needed to firmly secure the tubes in the tubeclamps. Please insure the right size allen key, an incorrect size can potentially damage the set screw.

Quality
Our key clamps have been manufactured according to strict specifications. The fittings are made from malleable iron (according to BS EN 1562) and are usually delivered in a hot dip galvanised finish (BS EN ISO 141) in order to combat corrosion and have a longer lasting product. Because of the galvanised finish this fitting is perfectly suitable for outdoor use. Our fittings are very strong and will support an axial load of up to 900 kg when tightened to a torque of 39Nm.

Questions about our key clamps? Then have a look at 'Everything about key clamps'.

Known part numbers:
146-D (Tubeclamps)
68-8 (Kee Klamp)
C15G40 (Fast Clamp)
146-4 (Q-Clamp)
A15-8 (Alvin)
608053E (EZ)
