Short Tee Swivel (60.3 mm / Size 9)

Name: Short Tee Swivel (60.3 mm / Size 9)
Brand: Keyclampshop
SKU: C25G50
Price: 15.97 GBP
Availability: InStock

Save £2.12

C25G50 | In Stock

Payment methods

Safe & secure payments via:

Trusted shops trustmark

Great reviews by real customers:

Note: This tubefitting is sold individually but must be used in pairs. Please order two pieces per angled joint.

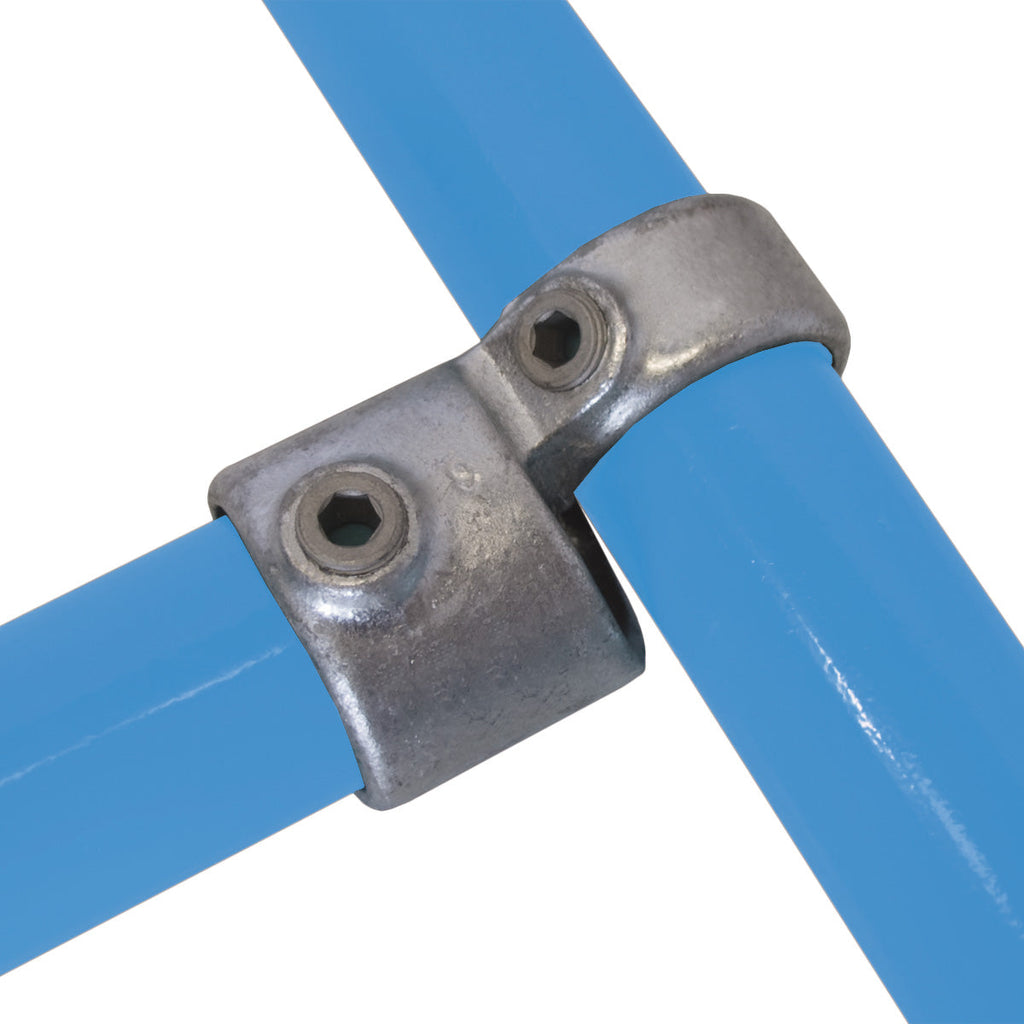

The Short Tee Swivel is a specialised key clamp used to create adjustable in-plane corner angles between 90° and 180°. It is ideal for changing the direction of rails in landing areas, staircases, or platforms where a flexible connection is needed.

Commonly used in combination with Elbows or Tee Clamps and a short length of tube, often finished with a Plastic End Cap. A central connector tube is required between the two clamps to complete the joint.

Assembly
The included set screw (Allen screw) makes assembly easy. An Allen key is the only tool needed to firmly secure the tubes in the tubeclamps. Please insure the right size allen key, an incorrect size can potentially damage the set screw.

Quality
Our key clamps have been manufactured according to strict specifications. The fittings are made from malleable iron (according to BS EN 1562) and are usually delivered in a hot dip galvanised finish (BS EN ISO 141) in order to combat corrosion and have a longer lasting product. Because of the galvanised finish this fitting is perfectly suitable for outdoor use. Our fittings are very strong and will support an axial load of up to 900 kg when tightened to a torque of 39Nm.

Questions about our key clamps? Then have a look at 'Everything about key clamps'.

Known part numbers:
148-E (Tubeclamps)
19-9 (Kee Klamp)
C25G50 (Fast Clamp)
184-5 (Q-Clamp)
A21-9 (Alvin)
608049F (EZ)
