Note: This tubefitting is sold individually but must be used in pairs. Please order two pieces per angled joint.

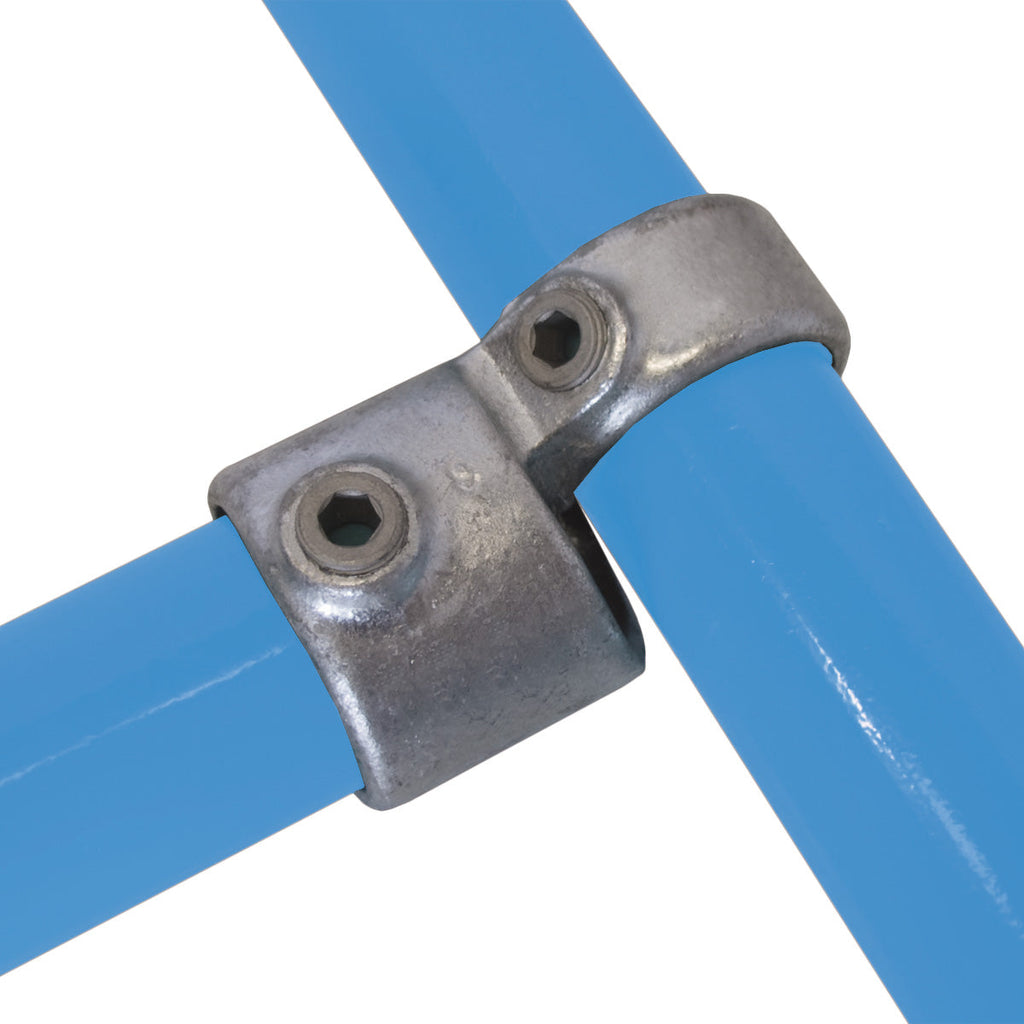

The Short Tee Swivel is a specialised key clamp used to create adjustable in-plane corner angles between 90° and 180°. It is ideal for changing the direction of rails in landing areas, staircases, or platforms where a flexible connection is needed.
Commonly used in combination with Elbows or Tee Clamps and a short length of tube, often finished with a Plastic End Cap. A central connector tube is required between the two clamps to complete the joint.
Assembly
Each key clamp is supplied with a set screw (Allen screw) for secure installation. An Allen key is the only tool required to tighten the tube firmly in the key clamp. Always use the correct Allen key size to prevent damage to the set screw and ensure proper tightening.
Quality & Standards
Our tube clamps are manufactured in accordance with BS EN 1562 and produced from high-quality malleable iron (grade KTH350-10). The tube clamps are finished with a hot-dip galvanised coating according to BS EN ISO 1461, providing excellent corrosion resistance and making them suitable for both indoor and outdoor use.
When properly tightened to a recommended torque of 39 Nm, the tube clamps create a strong and reliable mechanical connection. Load capacity depends on the specific fitting type, tube size and construction design.
If you would like to learn more about our key clamp system, please visit our guide: Everything about key clamps.
Known part numbers:
148-B (Tubeclamps)
19-6 (Kee Klamp)
C25G25 (Fast Clamp)
148-2 (Q-Clamp)
A21-6 (Alvin)
608049C (EZ)
