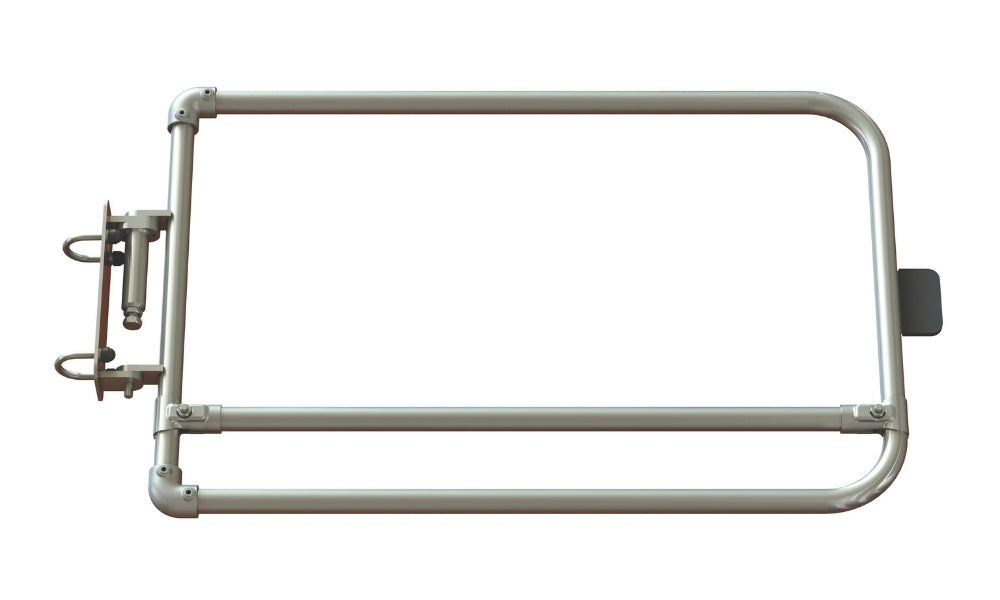

This single Kee Gate self-closing safety gate is a fully tested industrial solution for securing hazardous access points such as ladder openings, roof hatches, mezzanines and elevated walkways. Designed for demanding indoor and outdoor environments, this galvanised steel safety gate ensures that access points are never unintentionally left open.
Why Choose Kee Gate?
Falls from height remain one of the leading causes of serious workplace injuries. A self-closing safety gate provides continuous edge protection without relying on human behaviour. The integrated spring-loaded hinge automatically returns the gate to its closed position after every use, maintaining constant fall protection at the access point.
Key Features
-
Automatic self-closing mechanism - Spring-loaded hinge secures the opening immediately after each use.
-
Adjustable width - Supplied at 1000 mm and can be cut to size on-site.
-
Hot-dip galvanised finish - Long-term corrosion resistance for outdoor and rooftop environments.
-
Universal fixing system - Suitable for round, square or flat uprights (33.7 - 48.3 mm).
-
No welding required - Fast mechanical installation with included U-bolts and brackets.
-
Heavy-duty construction - Engineered and load tested to withstand 225 kg downward force.

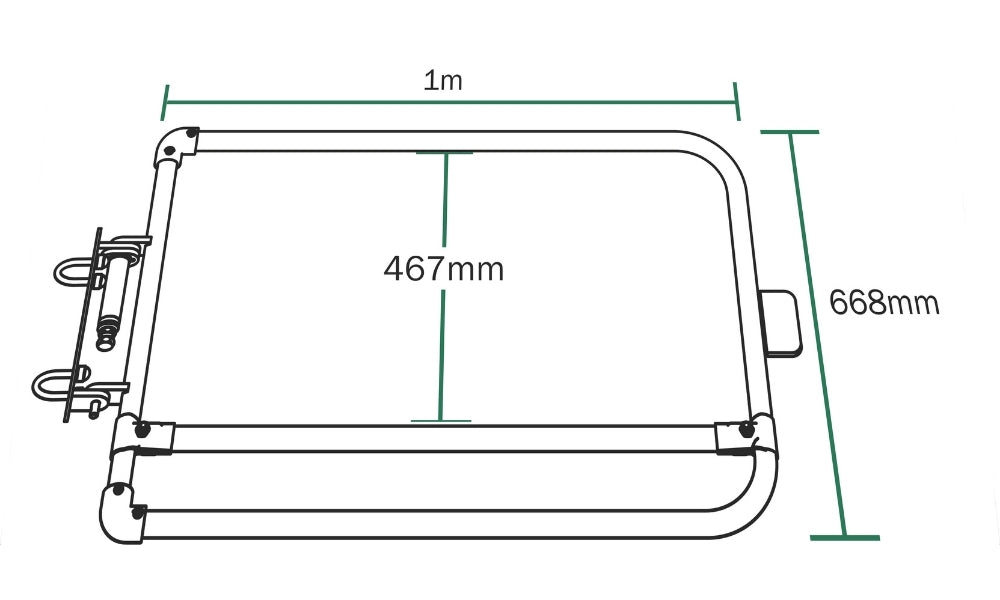

Technical Specifications & Drawings
-
Height: 668 mm
-
Width: Up to 1000 mm (can be reduced on-site)
-
Weight: approx. 14 kg
-
Tube diameter: 33.7 mm OD x 3.2 mm wall thickness
-
Load capacity: 225 kg downward force
Need detailed technical drawings? Download the Kee Gate Technical Datasheets (PDF) including dimensional drawings, fixing details and performance data for compliance and project planning.
Tested & Certified
- 50,000+ open/close cycles tested
- 600+ hours salt spray corrosion resistance
- Load tested to 225 kg
- Compliant with EN 14122 and EN 13374
Easy Installation
The gate is supplied with U-bolts and universal mounting brackets for fast and secure installation on round, square or flat surfaces. No specialist tools or welding are required. Watch the installation video (see product images) for step-by-step guidance or download the Kee Gate Installation and Maintenance Manual (PDF) for full installation instructions and maintenance guidelines.
Typical Applications

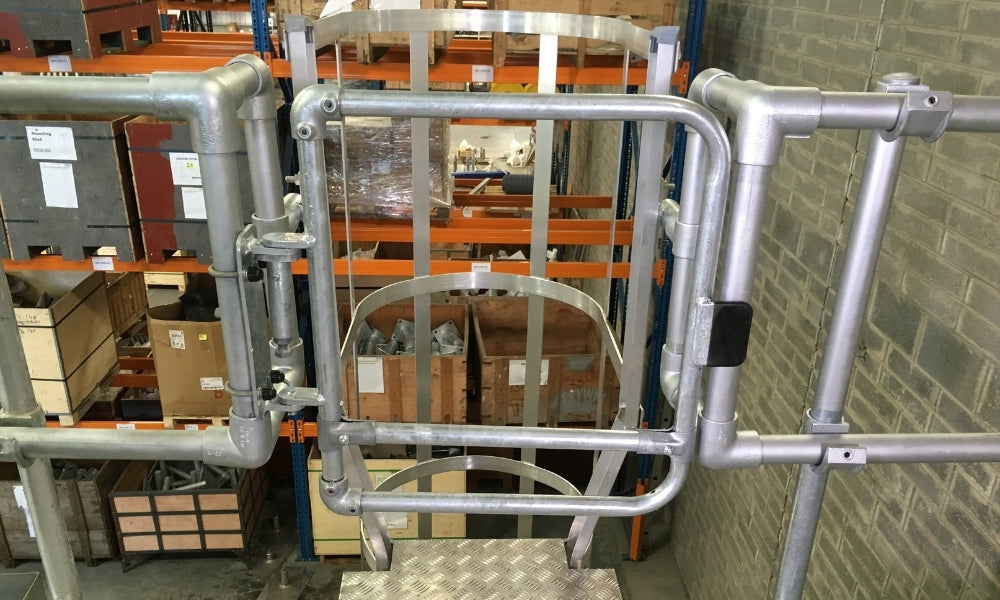

Ideal for warehouses, rooftops, manufacturing plants, and maintenance areas, Kee Gate protects personnel by automatically securing hazardous access points without relying on manual closure. Typical applications are:
- Fixed ladder access points
- Roof edge protection systems
- Maintenance platforms
- Industrial walkways and restricted areas
Available Kee Gate Variants
This Kee Gate is also available in a high-visibility yellow powder-coated finish, as a double-width version for openings up to 1800 mm, and in a full-height 1100 mm version with integrated toeboard for enhanced rooftop protection.
Comparable part numbers
This product is comparable to, or can be used as an alternative for, the following part numbers:
- SGEUGV2 (old sku) (Kee Klamp)
