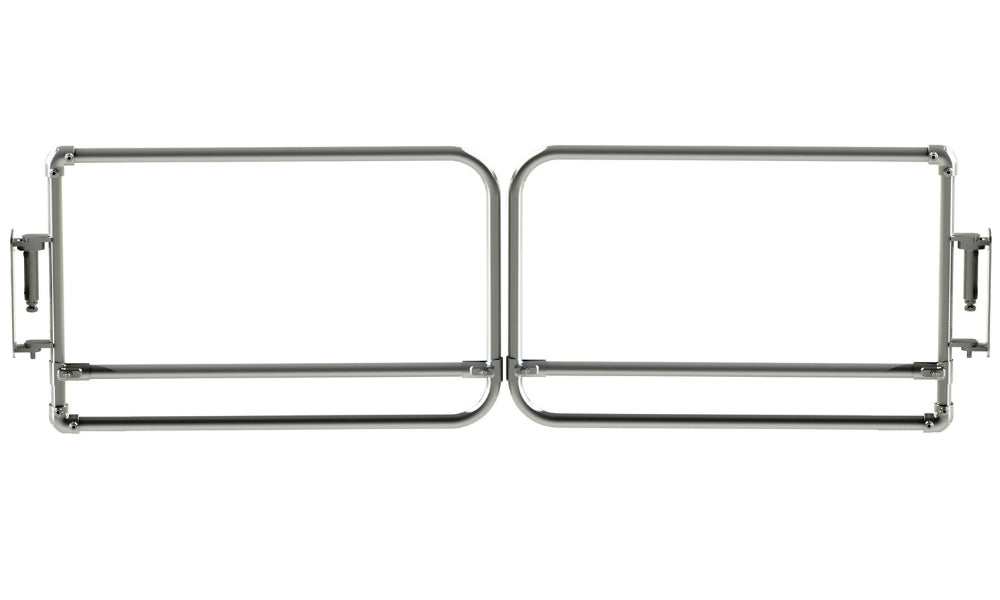

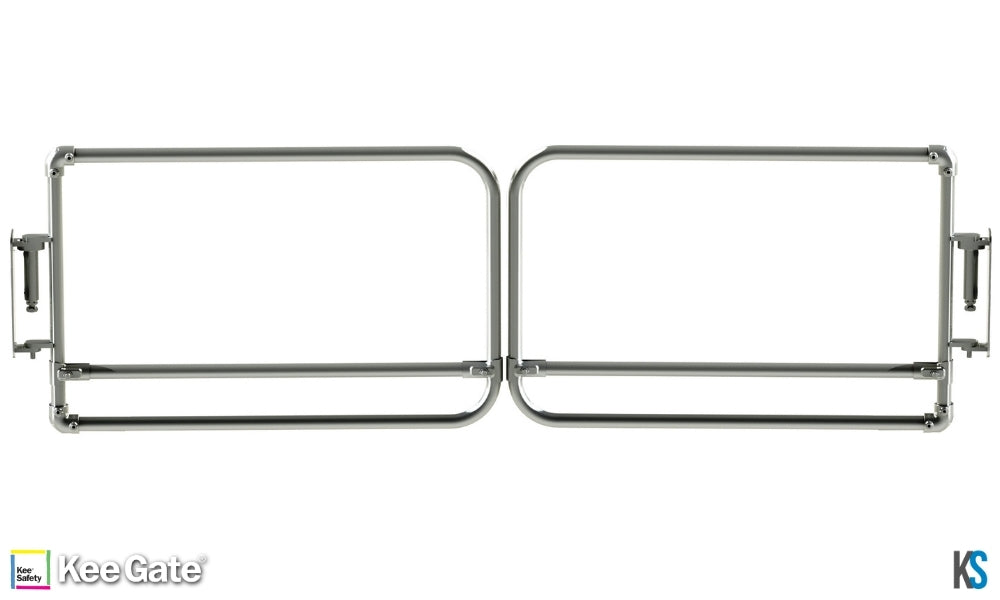

This Kee Gate double self-closing safety gate is specifically designed for securing wider industrial access openings up to 1800 mm. It is ideal for large internal platform openings, machinery access zones and wide walkways where controlled access is required within an existing guardrail system.
Designed for Wide Access Points
Where a single gate is insufficient, the double Kee Gate provides secure closure across larger openings while maintaining smooth and practical access. Both leaves are equipped with a spring-loaded hinge mechanism that automatically returns the gate to the closed position after each use.
Important: This double gate is designed to close an access opening within a guardrail system. It is not intended to function as edge protection at roof perimeters. For edge protection at height, separate single gates with an intermediate upright or a fully compliant guardrail configuration must be used.
Key Features
-
Double self-closing mechanism with adjustable spring tension
-
Adjustable width for openings up to 1800 mm, can be cut to size
-
Reinforced fixing system for increased structural stability
-
Hot-dip galvanised steel for outdoor durability
-
Mechanical installation, no welding required

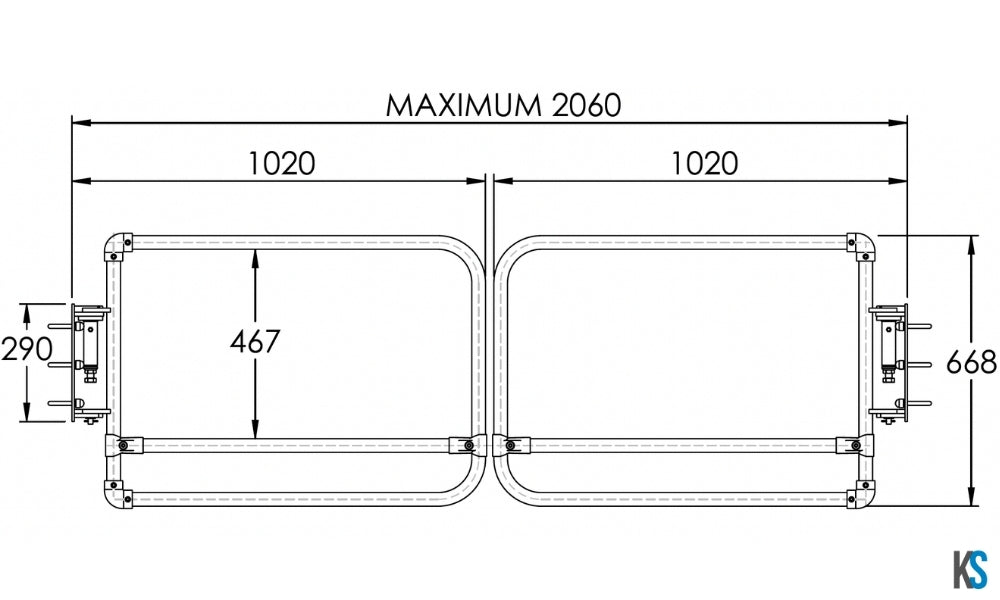

Technical Specifications & Drawings
-
Height: 668 mm
-
Width: Up to 1800 mm
-
Weight: approx. 30 kg
-
Tube: 33.7 mm OD x 3.2 mm wall thickness
-
Load tested: 225 kg downward force
Need detailed technical drawings? Download the Kee Gate Technical Datasheets (PDF) including dimensional drawings, fixing details and performance data for compliance and project planning.
Tested & Compliant
- 50,000+ cycle durability test
- 600+ hours salt spray test
- EN 14122 compliant
- EN 13374 compliant
Easy Installation
The double gate is supplied with U-bolts and universal mounting brackets for fast and secure installation on round, square or flat surfaces. No specialist tools or welding are required. Watch the installation video (see product images) for step-by-step guidance or download the Kee Gate Installation and Maintenance Manual (PDF) for full installation instructions and maintenance guidelines.

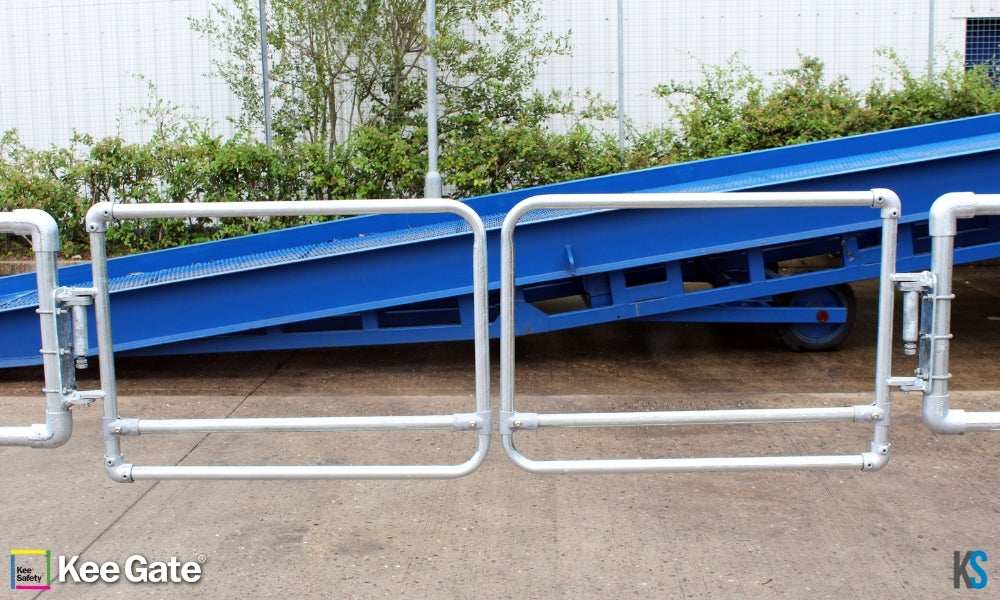

Typical Applications
- Wide internal platform access openings
- Machinery access zones within guardrails
- Industrial walkways with controlled entry points
- Maintenance areas requiring automatic closure
- Access points on rooftops within existing compliant railing systems
Available Kee Gate Variants
This Kee Gate is also available in a standard galvanised finish, as a single-width version for openings up to 1000 mm, and in a full-height 1100 mm version with integrated toeboard for enhanced fall protection where required.
Comparable part numbers
This product is comparable to, or can be used as an alternative for, the following part numbers:
- SGEUDGV2 (old sku) (Kee Klamp)
