Self Closing Safety Gate - Double - Galvanised

Self Closing Safety Gate - Double - Galvanised

Name: Self Closing Safety Gate - Double - Galvanised
Brand: Keyclampshop.co.uk
SKU: SGEUDP2GV
Price: 674.10 GBP
Availability: InStock

Save £89.88

SGEUDP2GV | In Stock

Payment methods

Safe & secure payments via:

Trusted shops trustmark

Great reviews by real customers:

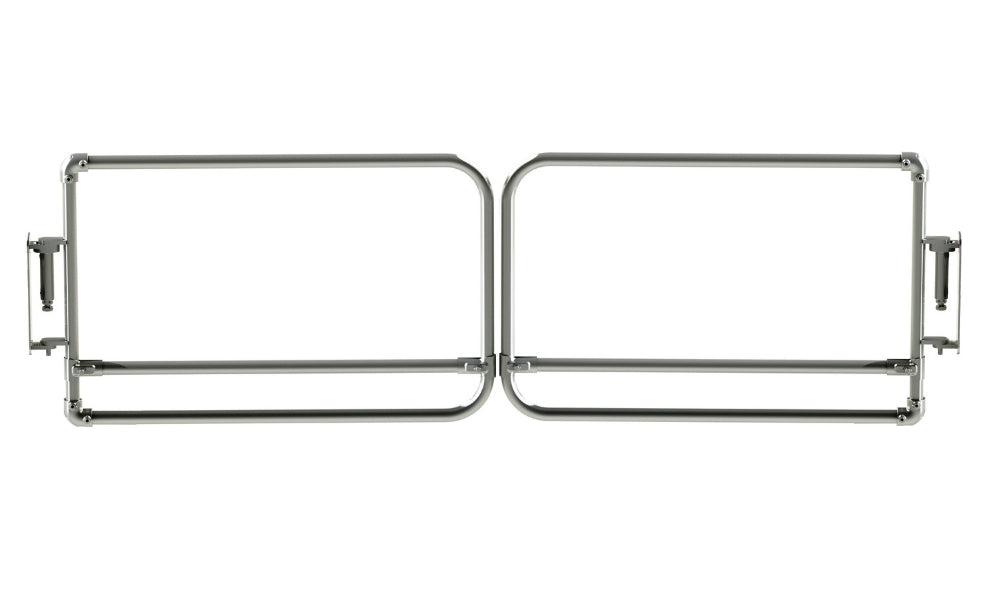

KEE GATE Double Self-Closing Safety Gate: Adjustable, Galvanised & EN-Compliant

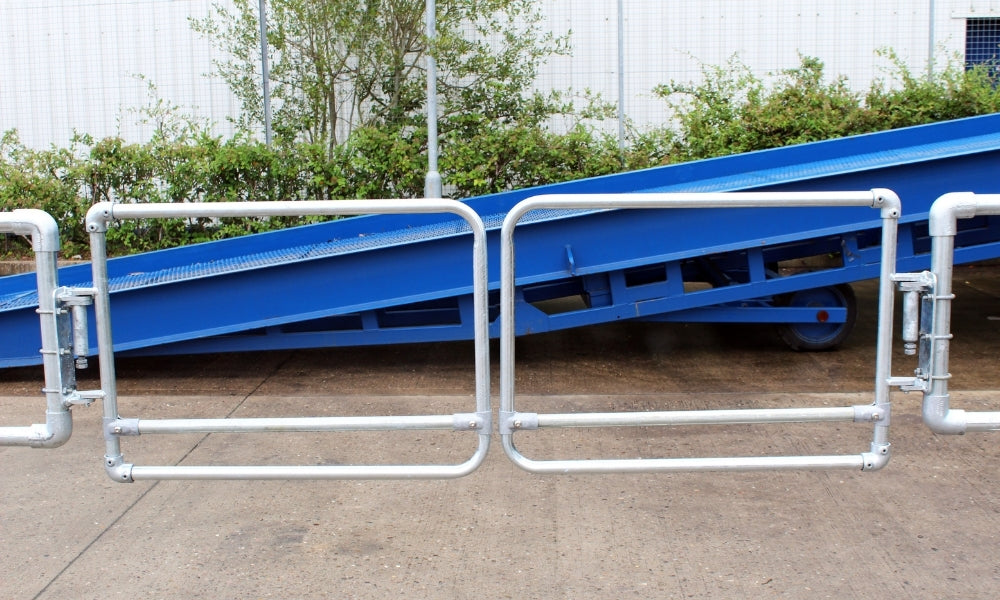

A pre-assembled, heavy-duty safety gate for wider openings up to 180 cm. Tested, compliant, and built to last. Kee Gate double gates are ideal for protecting wide voids such as Walkways or machinery zones. Thanks to the spring-loaded hinge, the gate automatically closes behind the user, ensuring the area is safely secured without manual locking.

Key Features

Self-closing spring mechanism in galvanised housing (adjustable tension)
Adjustable width: can be cut to fit on site
No welding required - only basic tools needed
Universal brackets fit round or square uprights and flat surfaces
Supplied with U-bolts and fixings
Strengthened attachment and increased number of fixings

Dimensions & Specs

Height: 668 mm
Width: Up to 1800 mm (excluding hinge and fixings, can be cut to size on-site for smaller gaps)
Weight: approx. 30 kg
Tube Diameter: 33.7 mm (OD) x 3.2 mm (wall thickness)

Easy Installation

Attach directly to handrails, guardrails, walls, or any supporting structure. Mounting hardware is included, and no welding or advanced tools are required. Watch video (see product images) for instructions.

Fully Tested & Compliant

Each gate is tested to meet strict performance and safety standards:

50,000 cycles without failure
225 kg downward pressure load-tested
600+ hours salt spray corrosion test
EN 14122:2016
EN 13374
OSHA Compliant

For Indoor & Outdoor Use

Made entirely from hot-dip galvanised steel, Kee Gate double gates are highly resistant to corrosion and perfect for both indoor and outdoor environments.

This gate is also available in a yellow powder-coated version, as well as a single-width model suitable for openings up to 100 cm.

Quality
Our key clamps have been manufactured according to strict specifications. The fittings are made from malleable iron (according to BS EN 1562) and are usually delivered in a hot dip galvanised finish (BS EN ISO 141) in order to combat corrosion and have a longer lasting product. Because of the galvanised finish this fitting is perfectly suitable for outdoor use. Our fittings are very strong and will support an axial load of up to 900 kg when tightened to a torque of 39Nm.

Questions about our key clamps? Then have a look at 'Everything about key clamps'.

Known part numbers:
SGEUDGV2 (old sku) (Kee Klamp)
