Railing Base Flange (48.3 mm / Size 8)

Name: Railing Base Flange (48.3 mm / Size 8)
Brand: Keyclampshop
SKU: C12G40
Price: 8.50 GBP
Availability: InStock

Save £1.13

C12G40 | In Stock

Payment methods

Safe & secure payments via:

Trusted shops trustmark

Great reviews by real customers:

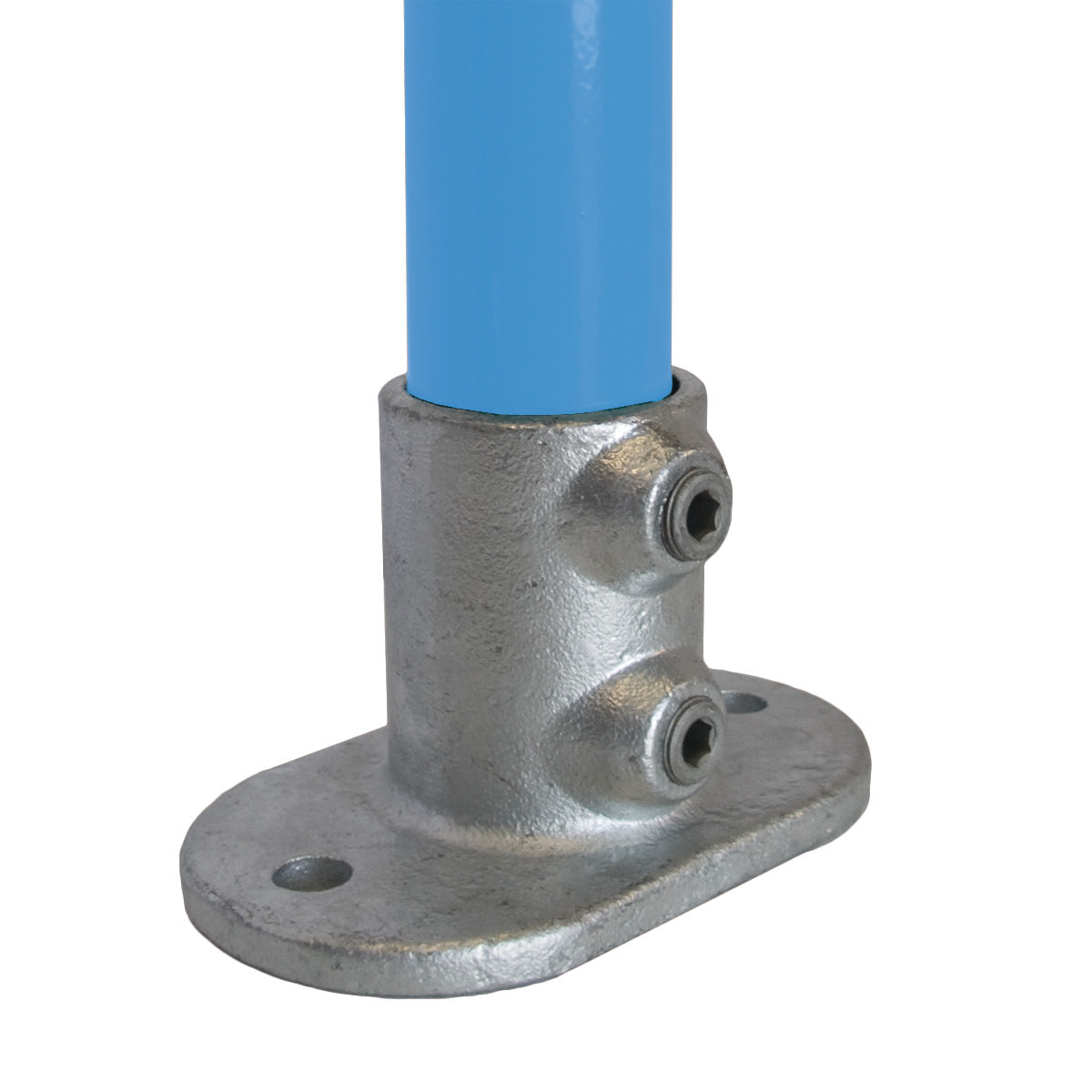

The Railing Base Flange is a heavy-duty key clamp designed to provide a strong, structural fixing for vertical posts on guardrails and safety barriers. Two set screws ensure a secure and rigid connection to the tube.

For maximum strength, align the fixing bolts with the direction of the applied load. Suitable for mechanical or chemical anchors. The tube can not pass through the base.

Typical applications: guardrails, balustrades, access barriers, and other safety-critical structures.

Assembly
The included set screw (Allen screw) makes assembly easy. An Allen key is the only tool needed to firmly secure the tubes in the tubeclamps. Please insure the right size allen key, an incorrect size can potentially damage the set screw.

Quality
Our key clamps have been manufactured according to strict specifications. The fittings are made from malleable iron (according to BS EN 1562) and are usually delivered in a hot dip galvanised finish (BS EN ISO 141) in order to combat corrosion and have a longer lasting product. Because of the galvanised finish this fitting is perfectly suitable for outdoor use. Our fittings are very strong and will support an axial load of up to 900 kg when tightened to a torque of 39Nm.

Questions about our key clamps? Then have a look at 'Everything about key clamps'.

Known part numbers:
132-D (Tubeclamps)
62-8 (Kee Klamp)
C12G40 (Fast Clamp)
132-4 (Q-Clamp)
A12-8 (Alvin)
608012E (EZ)
