Handrail Bracket (42.4 mm / Size 7)

Name: Handrail Bracket (42.4 mm / Size 7)
Brand: Keyclampshop
SKU: C16G32
Price: 6.46 GBP
Availability: InStock

C16G32 | In Stock

Payment methods

Safe & secure payments via:

Trusted shops trustmark

Great reviews by real customers:

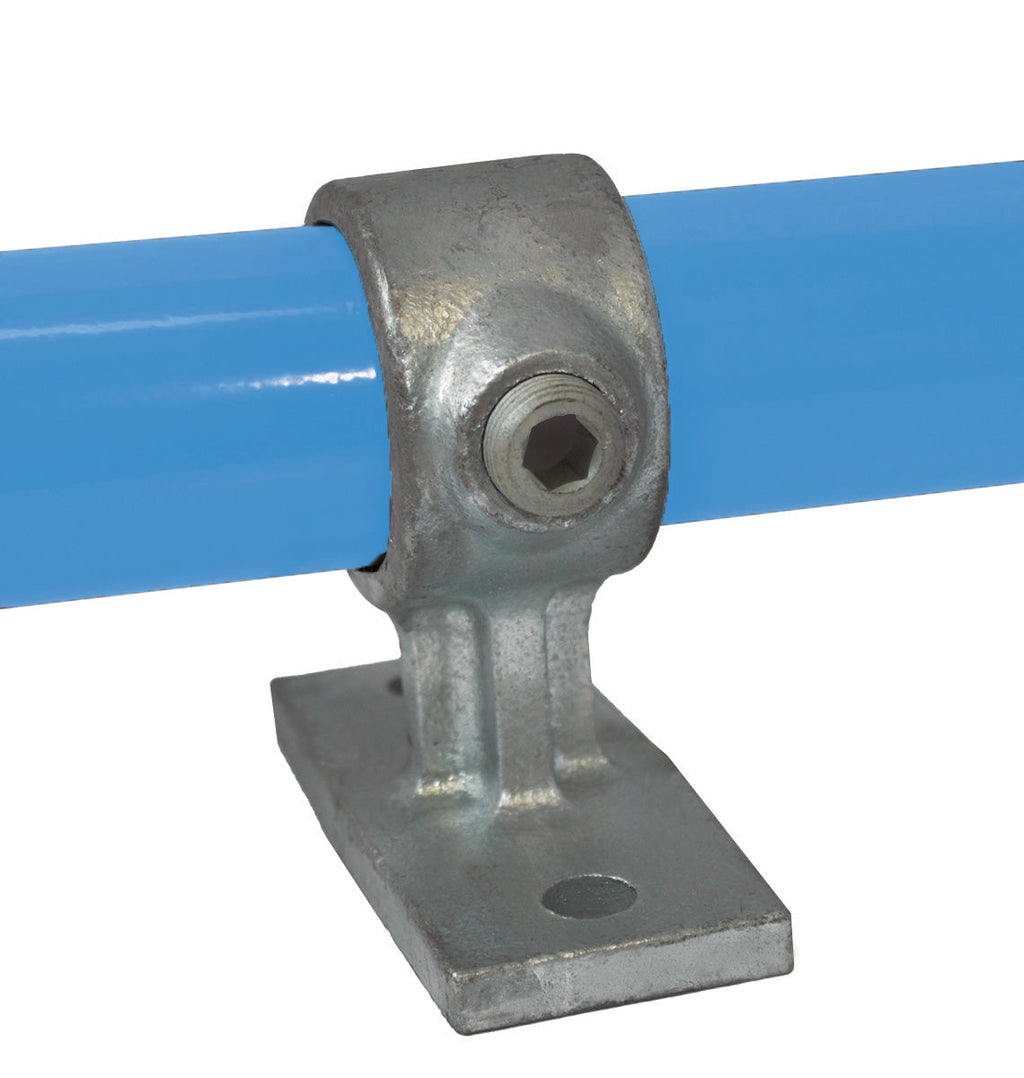

This Handrail Bracket key clamp or Wall-Mount Rail Support is designed to fix a 42.4 mm tube securely to a wall or other flat surface. It is commonly used to support handrails along walls, secure tubular frames or connect kick plates and signage to uprights or building façades.

The tube passes through the fitting in a continuous length. Not suitable for joining two tubes within the clamp.

Assembly
The included set screw (Allen screw) makes assembly easy. An Allen key is the only tool needed to firmly secure the tubes in the tubeclamps. Please insure the right size allen key, an incorrect size can potentially damage the set screw.

Quality
Our key clamps have been manufactured according to strict specifications. The fittings are made from malleable iron (according to BS EN 1562) and are usually delivered in a hot dip galvanised finish (BS EN ISO 141) in order to combat corrosion and have a longer lasting product. Because of the galvanised finish this fitting is perfectly suitable for outdoor use. Our fittings are very strong and will support an axial load of up to 900 kg when tightened to a torque of 39Nm.

Questions about our key clamps? Then have a look at 'Everything about key clamps'.

Known part numbers:
143-C (Tubeclamps)
70-7 (Kee Klamp)
C16G32 (Fast Clamp)
143-3 (Q-Clamp)
A34-7 (Alvin)
608034D (EZ)
