Angle Base Flange (11º to 30º) 48.3 mm

Name: Angle Base Flange (11º to 30º) 48.3 mm
Brand: Keyclampshop
SKU: C59G40
Price: 12.92 GBP
Availability: InStock

Save £5.16

C59G40 | In Stock

Payment methods

Safe & secure payments via:

Trusted shops trustmark

Great reviews by real customers:

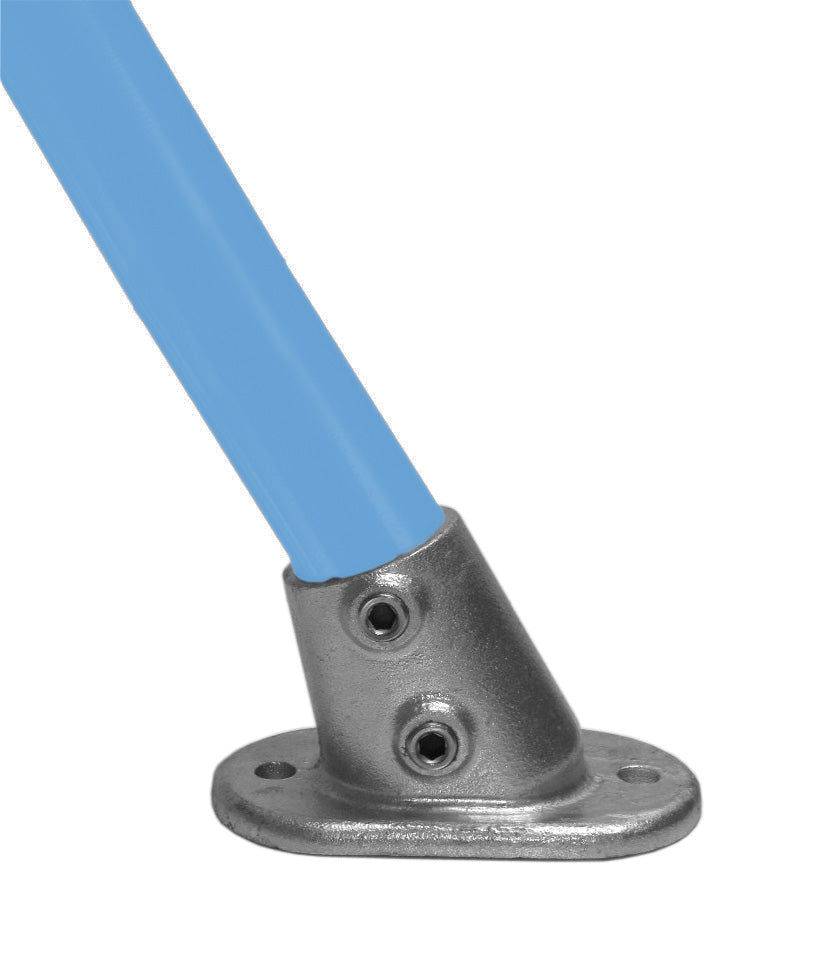

The Angle Base Flange (11° to 30°) is a key clamp that is similar to a type C53, it is used to set the upright at an angle between 11º– 30º. This fitting should only be subjected to light loads which cannot be positioned at 90o to the applied load. For greater loads or other tube sizes a type C12 flange should be used with the upright bent to the required angle Ø indicates the diameter of the fixing hole.

Assembly
The included set screw (Allen screw) makes assembly easy. An Allen key is the only tool needed to firmly secure the tubes in the tubeclamps. Please insure the right size allen key, an incorrect size can potentially damage the set screw. Please find our assortment of Allen keys and other accessories in the top menu.

Quality
Our key clamps have been manufactured according to strict specifications. The fittings are usually delivered in a hot dip galvanised finish in order to combat corrosion and have a longer lasting product. Because of the galvanised finish this fitting is suitable for outdoor use.

Questions about our key clamps? Then have a look at 'Everything about key clamps'.

Known part numbers:
151-D (Tubeclamps)
363-8 (Kee Klamp)
C59G40 (Fast Clamp)
252-4 (Q-Clamp)
C59-8 (Alvin)
