Sloped Railing Base Flange (11° to 30°) (42.4 mm / Size 7)

Name: Sloped Railing Base Flange (11° to 30°) (42.4 mm / Size 7)
Brand: Keyclampshop
SKU: C59G32
Price: 23.79 GBP
Availability: InStock

Save £1.50

C59G32 | In Stock

Payment methods

Safe & secure payments via:

Trusted shops trustmark

Great reviews by real customers:

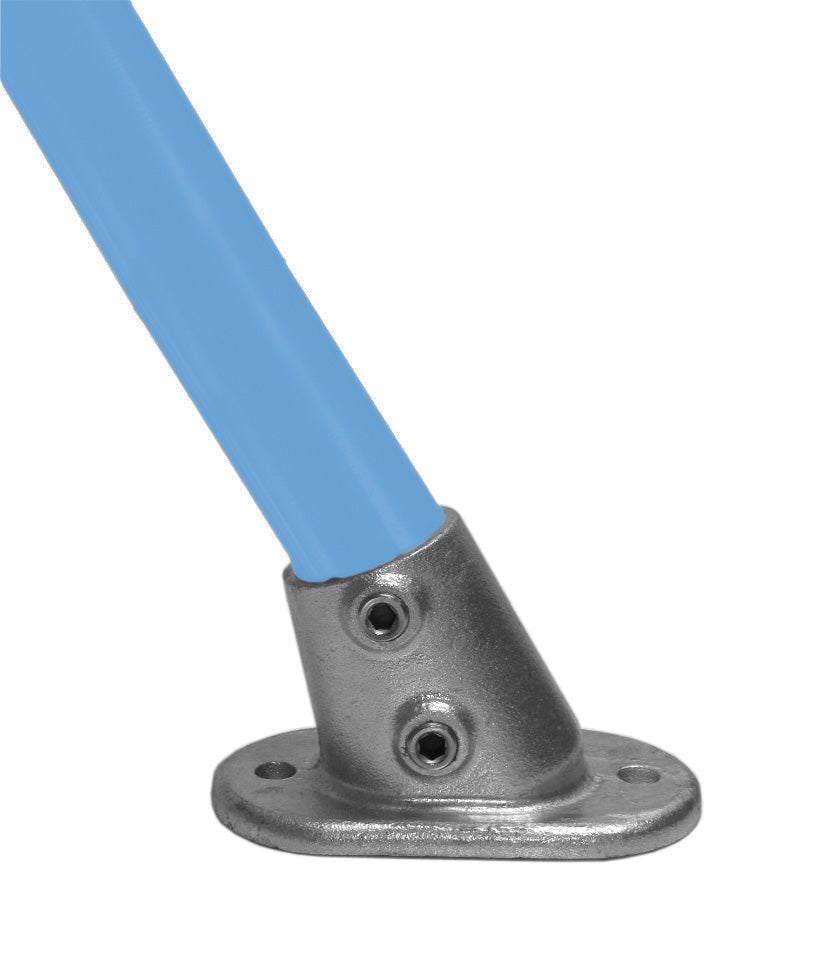

The Sloped Railing Base Flange is designed to support a vertical post on gradients between 11° and 30°. It is typically used in sloped handrail systems such as ramps or stairways.

This fitting is intended for light-duty applications only and must be fixed with the mounting holes aligned with the direction of the applied load. For higher loads, consider using a standard Railing Base Flange (C12) with a pre-bent tube.

Typical applications: DDA-compliant handrails, light-duty sloped guardrails and angled railing posts.

Assembly
The included set screw (Allen screw) makes assembly easy. An Allen key is the only tool needed to firmly secure the tubes in the tubeclamps. Please insure the right size allen key, an incorrect size can potentially damage the set screw.

Quality
Our key clamps have been manufactured according to strict specifications. The fittings are made from malleable iron (according to BS EN 1562) and are usually delivered in a hot dip galvanised finish (BS EN ISO 141) in order to combat corrosion and have a longer lasting product. Because of the galvanised finish this fitting is perfectly suitable for outdoor use. Our fittings are very strong and will support an axial load of up to 900 kg when tightened to a torque of 39Nm.

Questions about our key clamps? Then have a look at 'Everything about key clamps'.

Known part numbers:
151-C (Tubeclamps)
363-7 (Kee Klamp)
C59G32 (Fast Clamp)
252-3 (Q-Clamp)
C59-7 (Alvin)
