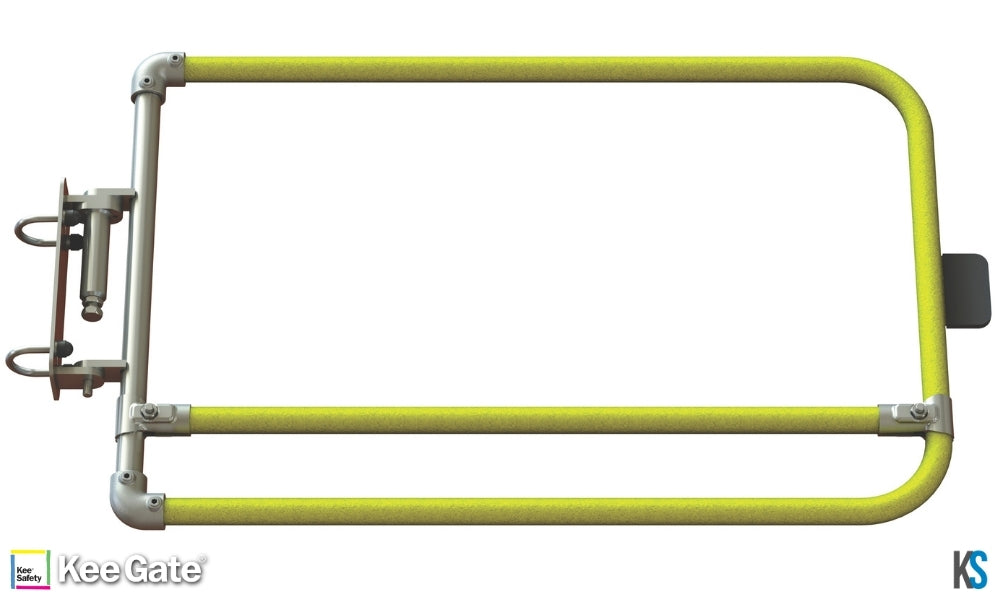

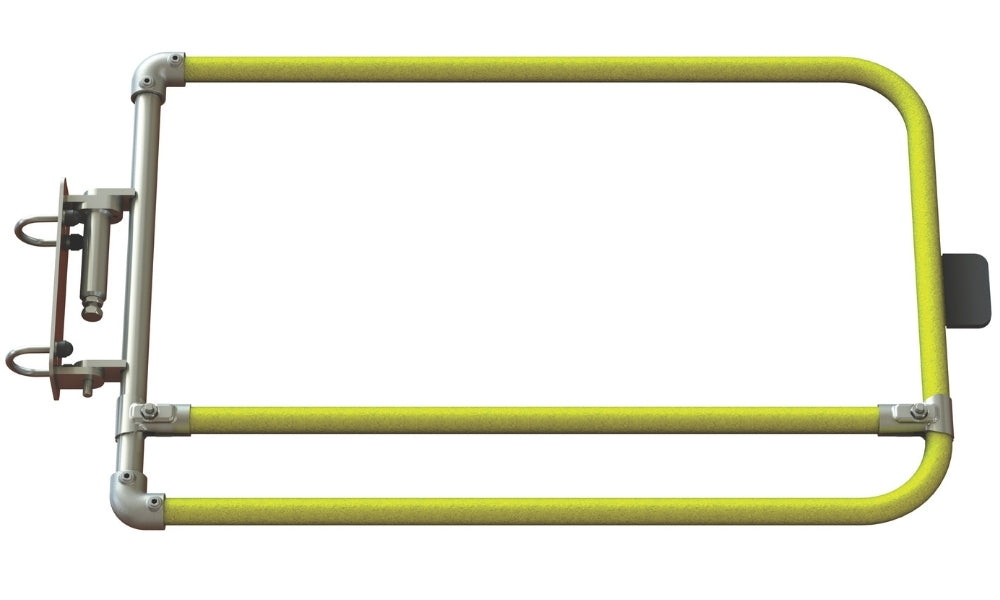

This single Kee Gate self-closing safety gate in high-visibility yellow is a fully tested industrial solution for securing hazardous access points such as ladder openings, roof hatches, mezzanines and elevated walkways. The powder-coated finish enhances visual awareness in safety-critical environments while maintaining the same structural performance as the galvanised version.
Why Choose the Yellow Kee Gate?
In busy industrial areas and rooftop environments, visibility is essential. The high-visibility yellow finish increases awareness of open edges and controlled access points. Combined with the integrated spring-loaded hinge, the gate automatically returns to its closed position after every use, ensuring continuous fall protection.
Key Features
-

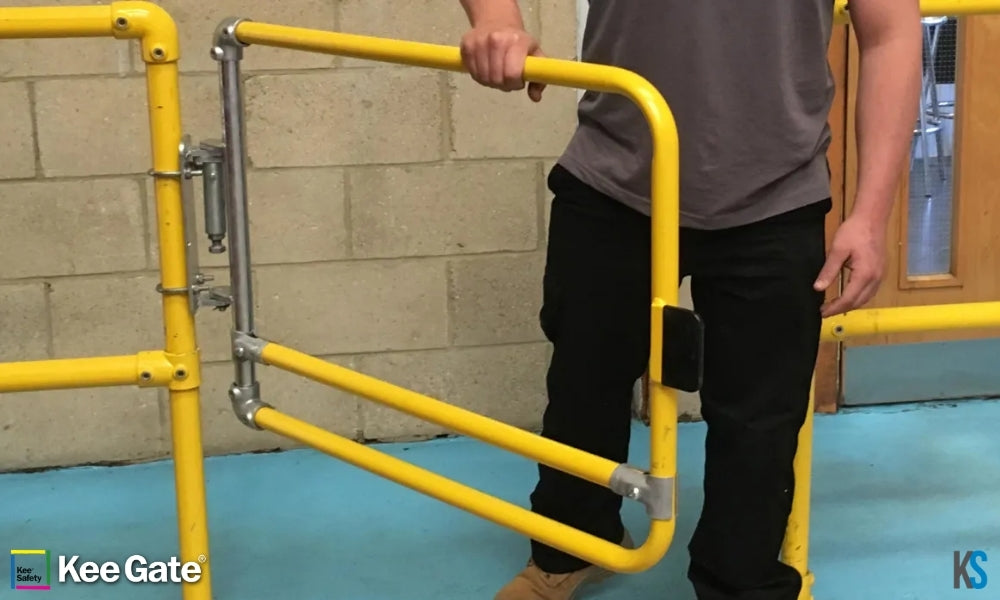

Automatic self-closing mechanism - Spring-loaded hinge secures the opening immediately after each use.
-
High-visibility yellow powder coating - Improves safety awareness in high-risk areas.
-
Adjustable width - Supplied at 1000 mm and can be cut to size on-site.
-
Durable galvanised base with powder-coated finish - Suitable for indoor and outdoor use.
-
Universal fixing system - Suitable for round, square or flat uprights (33.7 - 48.3 mm).
-
No welding required - Fast mechanical installation with supplied U-bolts and brackets.
-
Heavy-duty construction - Engineered and load tested to withstand 225 kg downward force.
Technical Specifications & Drawings
-
Height: 668 mm
-
Width: Up to 1000 mm (can be reduced on-site)
-
Weight: approx. 14 kg
-
Tube diameter: 33.7 mm OD x 3.2 mm wall thickness
-
Load capacity: 225 kg downward force
Need detailed technical drawings? Download the Kee Gate Technical Datasheets (PDF) including dimensional drawings, fixing details and performance data for compliance and project planning.
Tested & Certified
- 50,000+ open/close cycles tested
- 600+ hours salt spray corrosion resistance
- Load tested to 225 kg
- Compliant with EN 14122 and EN 13374
Easy Installation
The gate is supplied with U-bolts and universal mounting brackets for fast and secure installation on round, square or flat surfaces. No specialist tools or welding are required. Watch the installation video (see product images) for step-by-step guidance or download the Kee Gate Installation and Maintenance Manual (PDF) for full installation instructions and maintenance guidelines.
Typical Applications

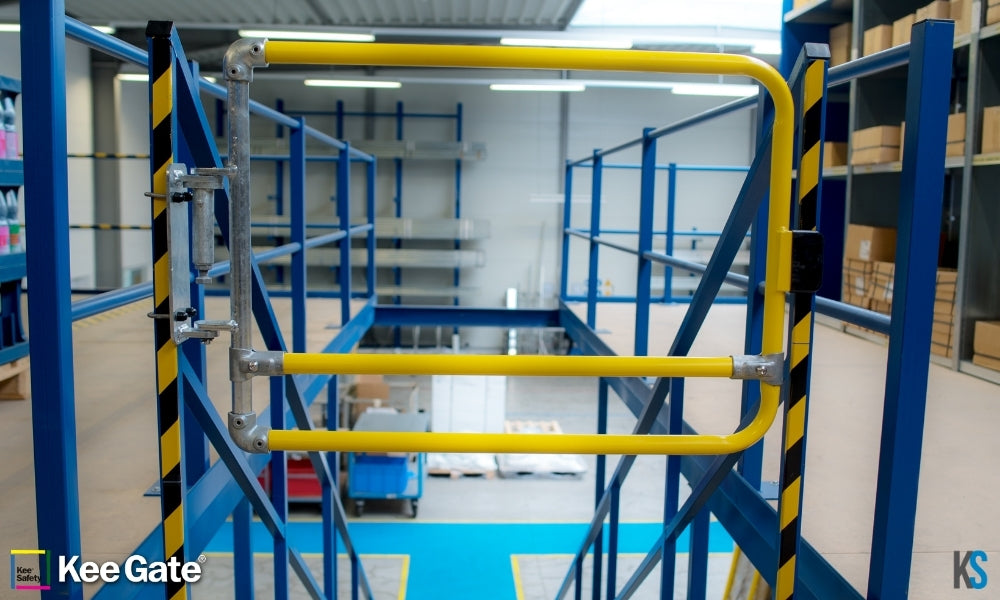

Ideal for warehouses, rooftops, manufacturing plants, and maintenance areas, Kee Gate protects personnel by automatically securing hazardous access points without relying on manual closure. Typical applications are:
- Fixed ladder access points

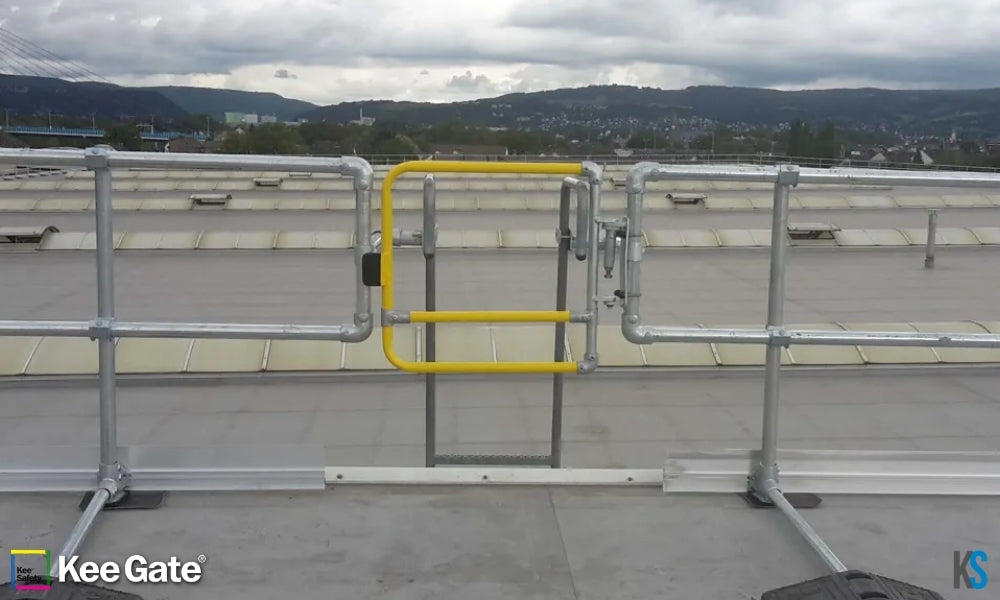

- Roof edge protection systems
- Maintenance platforms
- Industrial walkways
- Safety-critical or high-traffic zones
Available Kee Gate Variants
This Kee Gate is also available in a standard galvanised finish, as a double-width version for openings up to 1800 mm, and in a full-height 1100 mm version with integrated toeboard for enhanced rooftop protection.
Comparable part numbers
This product is comparable to, or can be used as an alternative for, the following part numbers:
- SGEUPC2 (old sku) (Kee Klamp)
